1. Description
This component converts the Composite Steel Shape (Type1) of Civil NX into data for the Shape of the Section component.
Enter Composite section properties for line elements.
TheComposite Steel Shape (Type1) in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > Composite
2. Grasshopper Path
[Midas] > [Properties] > [ Composite Steel Shape (Type1) ]

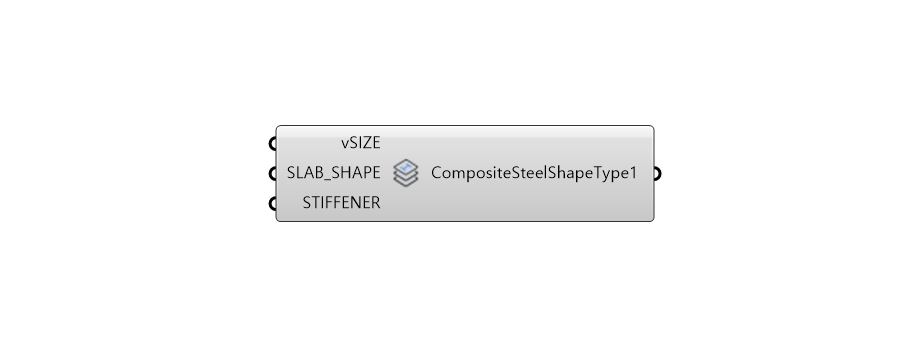

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | vSIZE | Steel Girder Dimension | Object | - |
Girder Dimension |
| 2 | SLAB_SHAPE | Slab Dimension | Object | - |
Slab Dimension |
| 3 | STIFFENER | Stiffener Item (Type1) | Object | - | Stiffener of Composite Steel Shape (Type 1) |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create Composite Steel Shape (Type1) Data | Object | - | Section |
5. Reference API Manual Link
Section Properties - Composite - Steel
