1. Description
This component related the Define Pressure Load Type function in Civil NX.
Define the pressure load cases and the corresponding pressure loads.
The Pressure Load Item in the Define Pressure Load Type can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Define Pressure Load Type]
2. Grasshopper Path
[Midas] > [Static Loads] > [Pressure Load Item]

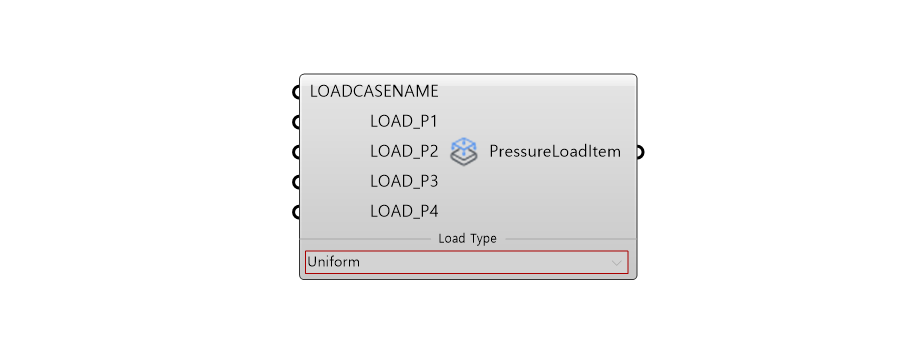

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LOADCASENAME | Load Case Name | String | - | - |
| 2 | LOAD_P1 | Load : P1 | Real | - | - |
| 3 | LOAD_P2 | Load : P2 | Real | - | - |
| 4 | LOAD_P3 | Load : P3 | Real | - | - |
| 5 | LOAD_P4 | Load : P4 | Real | - | - |
| 6 | Load Type | Select Load Type | Select | Uniform | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Pressure Load Item | Object | - | Define Pressure Load Type |
5. Reference API Manual Link
