1. Description
This component related the Beam Loads function in Civil NX. This component can be used when the Load Type is Uniform Pressure or Trapezoidal Pressure. Apply the pressure load considering the height of the barrier H that is not the part of the model. Additional H is the distance from the top in the Local y or z (+) direction depending on the load direction.
The Beam Load Additional in the Beam Loads can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Element/Line Beam Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Beam Load Additional]

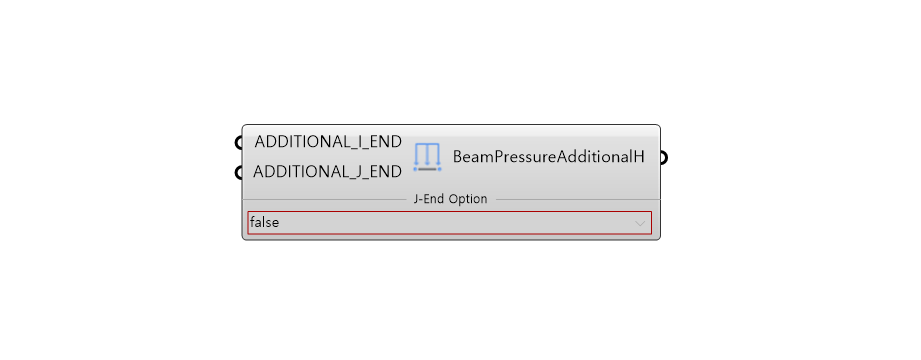

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ADDITIONAL_I_END | Distance I-End | Real | - | - |
| 2 | ADDITIONAL_J_END | Distance J-End | Real | - | - |
| 3 | J-End option | Use J-End Option | Boolean | False | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | BMLD | Create Beam Loads | Json | - | Beam Loads |
5. Reference API Manual Link
Beam Loads (Element, Line, Typical)
