1. Description

This component operates the Assign Plane Loads function in Civil NX.
Apply the plane loads defined in (Plane Load Type) to any specific locations on solid elements.

The Solid Plane Load in the Assign Plane Loads can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Pressure Load] group > [Assign Plane Loads] menu > [Assign Plane Loads] > [Solid] Element Type

2. Grasshopper Path

[Midas] > [Static Loads] > [Solid Plane Load]

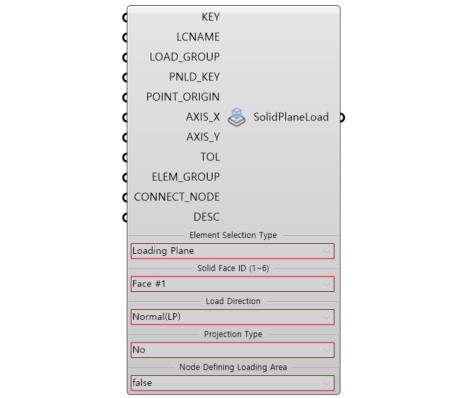

3. Component Image

Solid Plane Load.png

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Plane Load ID	Integer	-	-
2	LCNAME	Load Case Name	String	-	-
3	LOAD_GROUP	Load Group Name	String	-	-
4	PNLD_KEY	Plane Load Type Key	Integer	-	-
5	POINT_ORIGIN	Origin Point	Array [x,y,z]	-	-
6	AXIS_X, AXIS_Y	Plane X,Y Axis	Array [x,y,z]	-	-
7	TOL	Tolerance	Real	-	-
8	ELEM_GROUP *	Element Group Name	String	-	-
9	CONNECT_NODE **	Loading Boundary Connecting Node	Integer	-	-
10	DESC	Description	String	-	-
11	Element Selection Type	Element Selection Type	Select	Loading plane	-
12	Solid Face ID (1~6)	Solid Face ID	Select	Face #1	-
13	Load Direction	Load Direction	Select	Normal(LP)	-
14	Projection Type	Projection Type	Select	No	-
15	Node Defining Loading Area	Node Defining Loading Area	Select	False	-

Activation Condition

* Only for if Element Selection Type is Group

** Only for if Element Selection Type is Loading Plane

Output Data

Index	Command	Description	Type	Method	Next Component
1	PNLA	Assign Solid Plane Loads	Json	PUT/DELETE	-

5. Reference API Manual Link

Assign Plane Loads
