1. Description
This component operates the Elastic Link function in Civil NX.
Create general elastic link data.
The General Elastic Link function can be found in the Civil NX main menu,select [Boundary] tab > [Links] group > [Elastic Link]
2. Grasshopper Path
[Midas] > [Boundary] > [General Elastic Link]

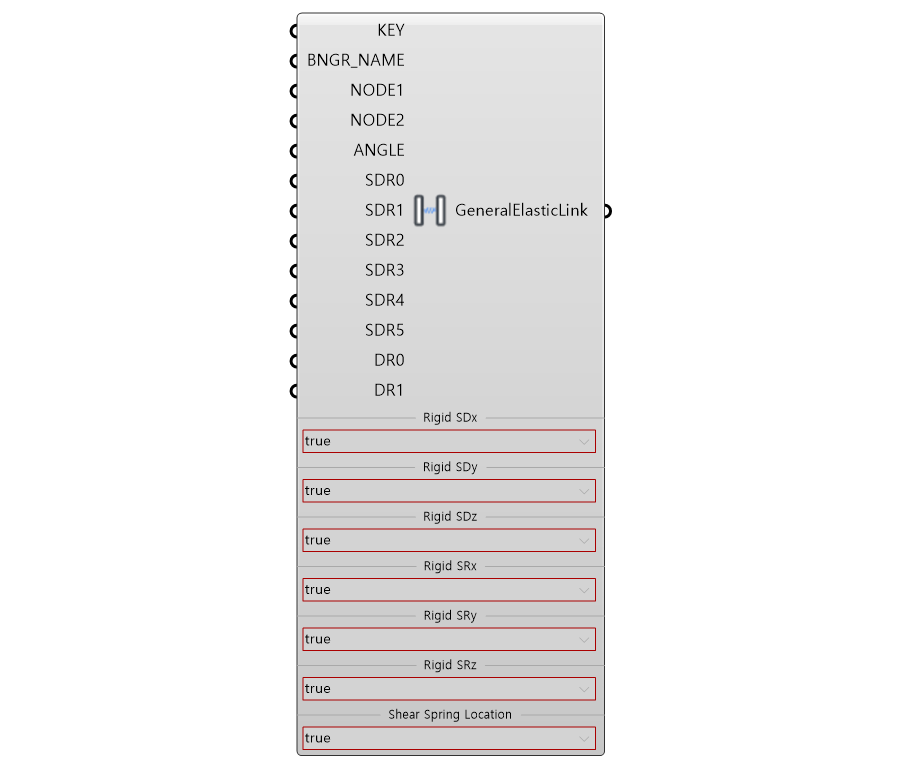

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Elastic Link ID | Integer | - | - |
| 2 | BNGR_NAME | Boundary Group Name | Integer | - | - |
| 3 | NODE1, NODE2 | Node No 1,2 | Integer | - | - |
| 4 | ANGLE | Angle defining the elastic link orientation | Real | - | - |
| 5 | SDR0~SDR5 | Stiffness in the link's local direction | Real | - | - |
| 6 | DR0~DR1 * | Distance Ratio from End I | Real | - | - |
| 6 | Rigid SDx,SDy,SDz SRx,SRy,SRz |
Stiffness of the selected components is entered as very large value | Select | - | - |
| 7 | Shear Spring Location | Save the location of shear springs | Select | False | - |
Activation Condition
* Only for if Shear Spring Location is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ELNK | Create Elastic Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
