1. Description
This component operates the Elastic Link function in Civil NX.
Create rigid elastic link data.
The Rigid Elastic Link function can be found in the Civil NX main menu,select [Boundary] tab > [Links] group > [Elastic Link]
2. Grasshopper Path
[Midas] > [Boundary] > [Rigid Elastic Link]

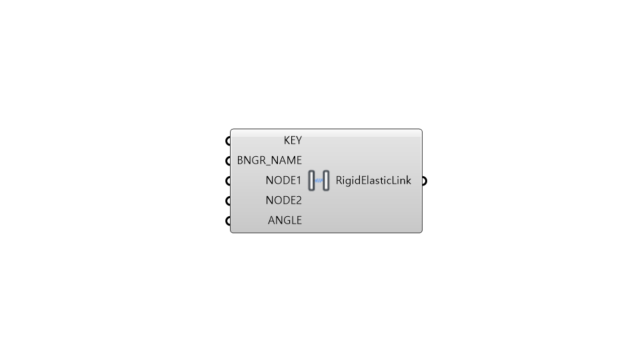

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Elastic Link ID | Integer | - | - |
| 2 | BNGR_NAME | Boundary Group Name | Integer | - | - |
| 3 | NODE1, NODE2 | Node No 1,2 | Integer | - | - |
| 4 | ANGLE | Angle defining the elastic link orientation | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ELNK | Create Elastic Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
