1. Description
This component operates the Elastic Link function in Civil NX.
Create Tension only elastic link data.
The Tension Only Elastic Link function can be found in the Civil NX main menu,select [Boundary] tab > [Links] group > [Elastic Link]
2. Grasshopper Path
[Midas] > [Boundary] > [Tension Only Elastic Link]

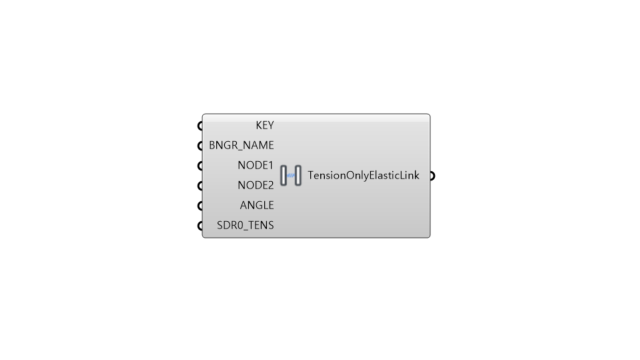

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Elastic Link ID | Integer | - | - |
| 2 | BNGR_NAME | Boundary Group Name | Integer | - | - |
| 3 | NODE1, NODE2 | Node No 1,2 | Integer | - | - |
| 4 | ANGLE | Angle defining the elastic link orientation | Real | - | - |
| 5 | SDR0_TENS | Tension Only Stiffness | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ELNK | Create Elastic Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
