1. Description
This component operates the Force-Deformation function in Civil NX.
Enter the hysteresis of spring stiffness for point spring supports or the tensile/compressive stiffness of an elastic link.
The Force-Deformation function can be found in the Civil NX main menu,select [Boundary] tab > [Advanced] group > [Forces-Deformation Funtion]
2. Grasshopper Path
[Midas] > [Boundary] > [Force Deformation Function]

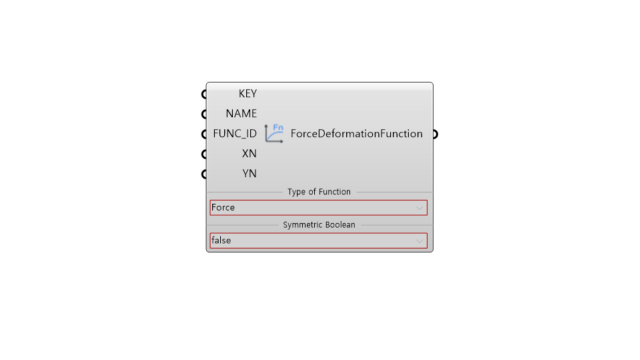

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | ID | Integer | - | - |
| 2 | NAME | Function Name | String | - | - |
| 3 | FUNC_ID | Function ID | Integer | - | - |
| 4 | XN | Disp or Radian | Real | - | - |
| 5 | YN | Force or Moment | Real | - | - |
| 6 |
Type of Function |
Disp-Force or Radian-Moment | Select | Force | - |
| 6 | Symmetric Boolean | Symmetric or Unsymmetric | Select | False | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MLFC | Create Force Deformation Funtion | Json | PUT/DELETE | - |
5. Reference API Manual Link
