1. Description
This component operate the Material Option function of Shape Properties in Civil NX.
"Material Option" prompts you to enter material properties for steel and concrete constituting steel RC composite sections.
The Material Option funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [SRC & Composite] tab > Material
2. Grasshopper Path
[Midas] > [Properties] > [ Composite Material User ]

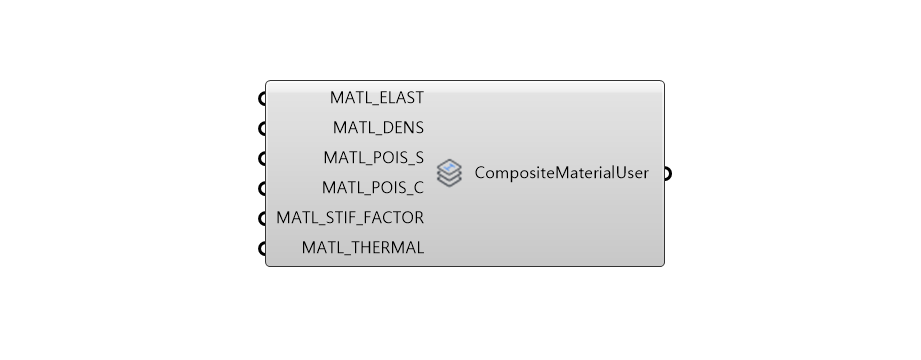

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | MATL_ELAST | Modulus of Elasticity Ratio of steel relative to concrete | Real | - | - |
| 2 | MATL_DENS | Specific Weight (Density) Ratio of steel relative to concrete | Real | - | - |
| 3 | MATL_POIS_S | Poisson's Ratio for steel | Real | - | - |
| 4 | MATL_POIS_C | Poisson's Ratio for concrete | Real | - | - |
| 5 | MATL_STIF _FACTOR |
Stiffness Reduction Factor of concrete | Real | - | - |
| 6 | MATL_THERMAL | Assign Steel to be the reference when calculating stiffness of a composite section (Not used) | Interger | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Material Option Data | Object | - | Section |
5. Reference API Manual Link
Section Properties - SRC
Section Properties - Composite - Steel
