1. Description
This component generates Shear Check Option Data for PSC Shape in the Civil NX.
This Option check shear stresses at Z1, Z2 and Z3 locations. Z1 and Z3 can be either input directly by the user or specified automatically. If the Auto option is checked, the program checks shear at the top and bottom ends of the webs.
Z1: Distance from the centroid to the underside of the top flange at the webs
Z3: Distance from the centroid to the upperside of the bottom flange at the webs
The Shear Check of PSC Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [PSC] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Shear Check of PSC Shape ]

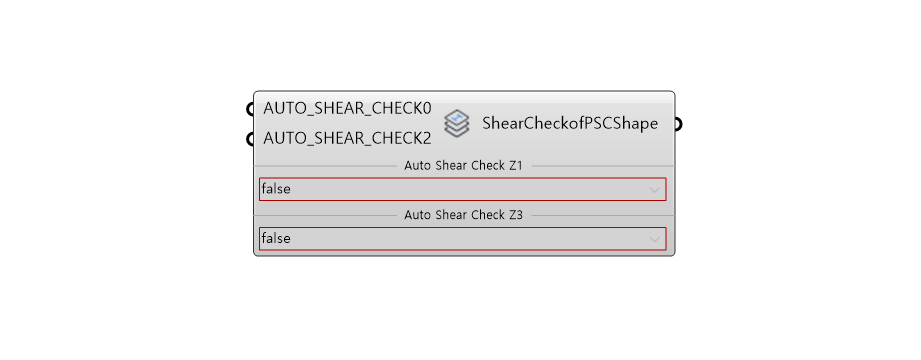

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | AUTO_SHEAR _CHECK 0,2 |
Shear Check Position for I,J | Real | 0 | - |
| 2 | Auto Shear Check Z1,Z3 | Auto Shear Check for Z1,Ze | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Shear Check of PSC Shape Data | Object | - |
PSC Shape 1,2 Cell |
5. Reference API Manual Link
