1. Description
This component generates Additional Option Data for Material Properties in the Civil NX.
Additional Option includes the following content
a. Thermal Transfer
b. Damping Ratio
c. Concrete & Steel User Mass Density Option
d. Plasticity Data
The Material Additional Option funtion can be found in the Civil NX main menu,select [Properties] tab > [Material Properties] group > [Material Properties] menu > Material
2. Grasshopper Path
[Midas] > [Properties] > [ Material Additional Option ]

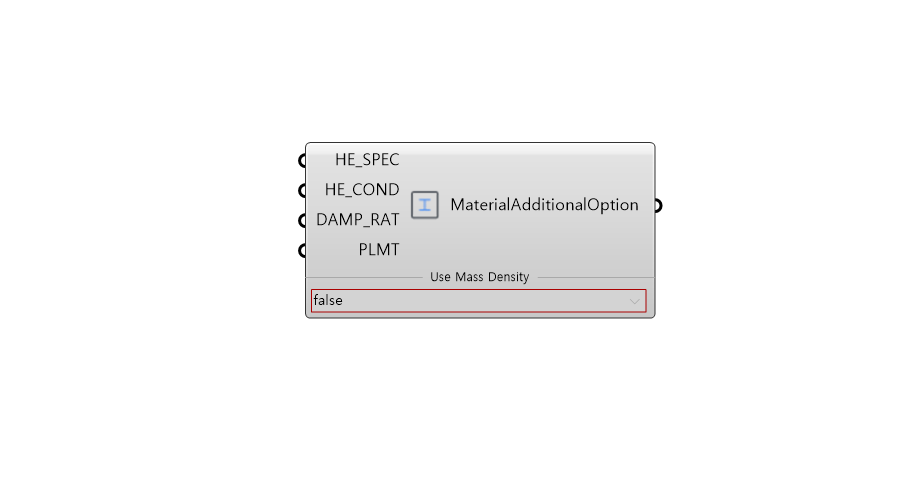

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | HE_SPEC | Specific Heat | Real | 0 | - |
| 2 | HE_COND | Heat Conduction | Real | 0 | - |
| 3 | DAMP_RAT | Damping Ratio | Real | 0.05 | - |
| 4 | PLMT | Plastic Material No. | Interger | 0 | - |
| 5 | Use Mass Density | Use Mass Density | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Material Additional Option Data | Object | - |
Concrete Material Steel Material SRC Material |
5. Reference API Manual Link
