1. Description
This component generates Girder Dimension of Composite Shape function in the Civil NX.
Girder Dimension includes only the Type for Steel Girder, and the detailed configuration items are as follows
a. Steel-Box [ Type 1, 2 ]
b. Steel-I [ Type 1, 2 ]
c. Steel -Tub [ Type 1, 2 ]
The Girder Dimension of Composite Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Girder Dimension of Composite Shape ]
Case 1 : Steel-Box

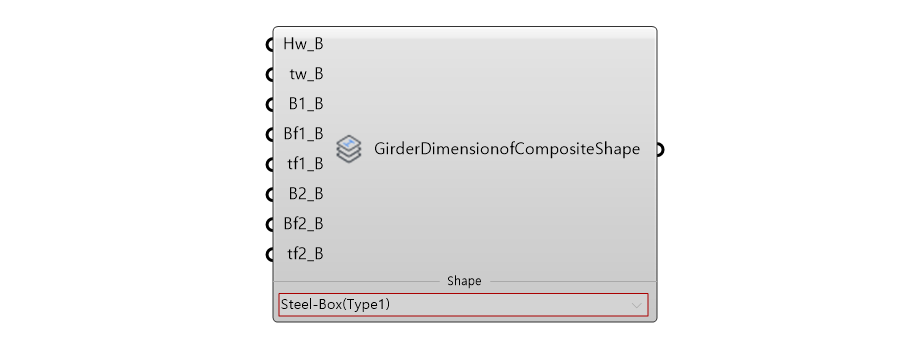

3. Component Image

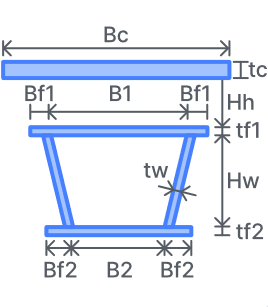

※ Ref. Image
4. Input/Output Value
- Input Data
Index | Name | Description | Type | Default |
Previous |
---|---|---|---|---|---|
1 | Hw_B | Height of web excluding flanges | Real | - | - |
2 | tw_B | Thickness of web | Real | - | - |
3 | B1_B | Width of Top flange | Real | - | - |
4 | Bf1_B | Top flange overhang from the center of web in Box Type | Real | - | - |
5 | tf1_B | Thickness of top flange | Real | - | - |
6 | B2_B | Width of Bottom flange | Real | - | - |
7 | Bf2_B | Bottom flange overhang from the center of web in Box Type | Real | - | - |
8 | tf2_B | Thickness of bottom flange | Real | - | - |
- Output Data
Index | Command | Description | Type | Method |
Next Component |
---|---|---|---|---|---|
1 | - | Create Dimension of Steel Shape Data (Steel Box) |
Object | - | Composite Steel Shape (Type 1) |
Case 2 : Steel-I

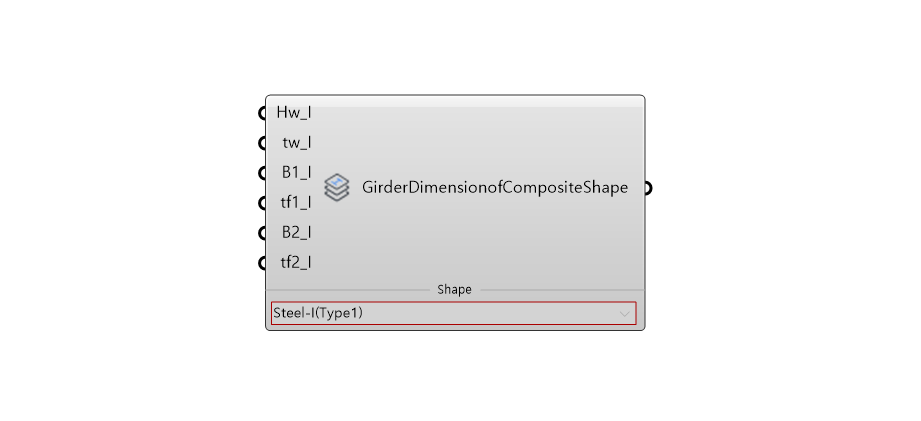

3. Component Image

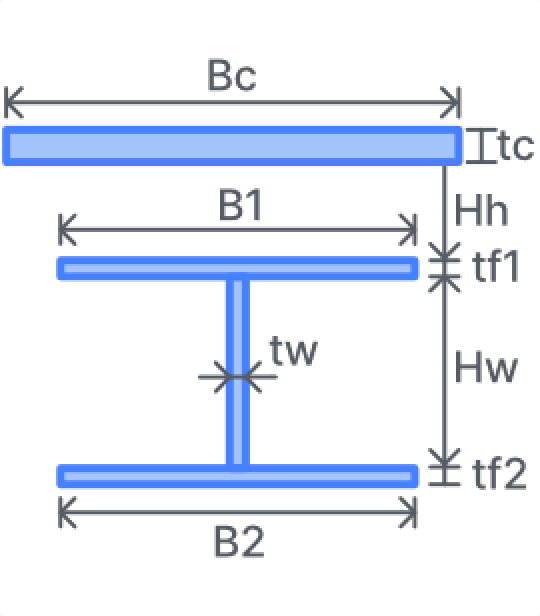

※ Ref. Image
4. Input/Output Value
- Input Data
Index | Name | Description | Type | Default |
Previous |
---|---|---|---|---|---|
1 | Hw_I | Height of web excluding flanges | Real | - | - |
2 | tw_I | Thickness of web | Real | - | - |
3 | B1_I | Width of Top flange | Real | - | - |
4 | tf1_I | Thickness of Top flange | Real | - | - |
5 | B2_I | Width of Bottom flange | Real | - | - |
6 | tf2_I | Thickness of Bottom flange | Real | - | - |
- Output Data
Index | Command | Description | Type | Method |
Next Component |
---|---|---|---|---|---|
1 | - | Create Dimension of Steel Shape Data (Steel I) |
Object | - | Composite Steel Shape (Type 1) |
Case 3 : Steel-Tub

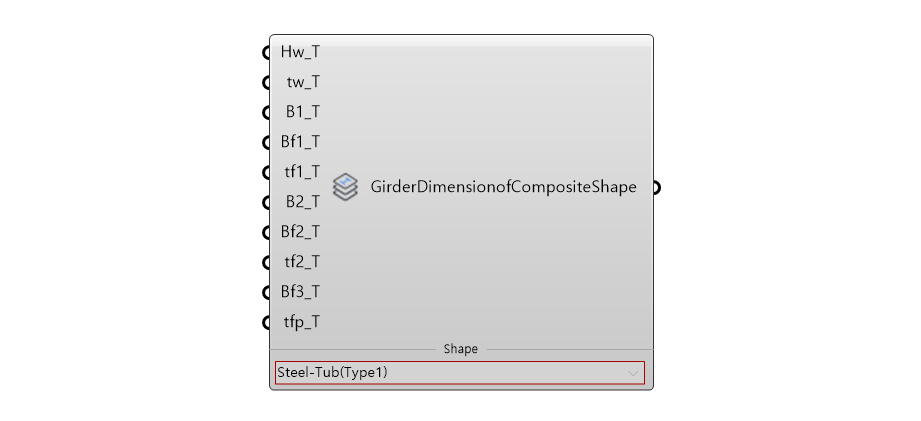

3. Component Image

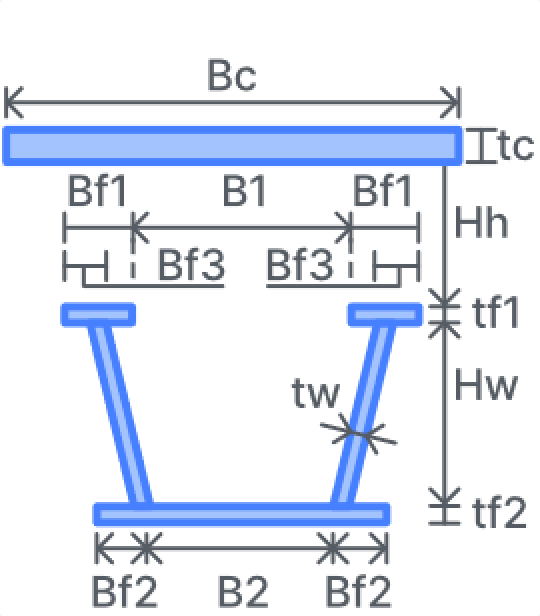

※ Ref. Image
4. Input/Output Value
- Input Data
Index | Name | Description | Type | Default |
Previous |
---|---|---|---|---|---|
1 | Hw_T | Height of web excluding flanges | Real | - | - |
2 | tw_T | Thickness of web | Real | - | - |
3 | B1_T | Clear spacing between the top flanges in Tub Type | Real | - | - |
4 | Bf1_T | Top flange width | Real | - | - |
5 | tf1_T | Thickness of top flange | Real | - | - |
6 | B2_T | Width of bottom flange | Real | - | - |
7 | Bf2_T | Bottom flange overhang from the center of web in Tub Type | Real | - | - |
8 | tf2_T | Thickness of bottom flange | Real | - | - |
9 | Bf3_T | Top flange overhang from the center of web in Tub Type | Real | - | - |
10 | tfp_T | Thickness of fictitious top plate | Real | - | - |
- Output Data
Index | Command | Description | Type | Method |
Next Component |
---|---|---|---|---|---|
1 | - | Create Dimension of Steel Shape Data (Steel Tub) |
Object | - | Composite Steel Shape (Type 1) |
5. Reference API Manual Link
Section Properties - Composite - Steel
