1. Description
This component operates the Define Floor Load Type function in Civil NX.
Define the floor load cases and the corresponding floor loads.
The Define Floor Load Type funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Pressure Load] group > [Assign Floor Loads] menu > [Define Floor Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Define Floor Load Type]

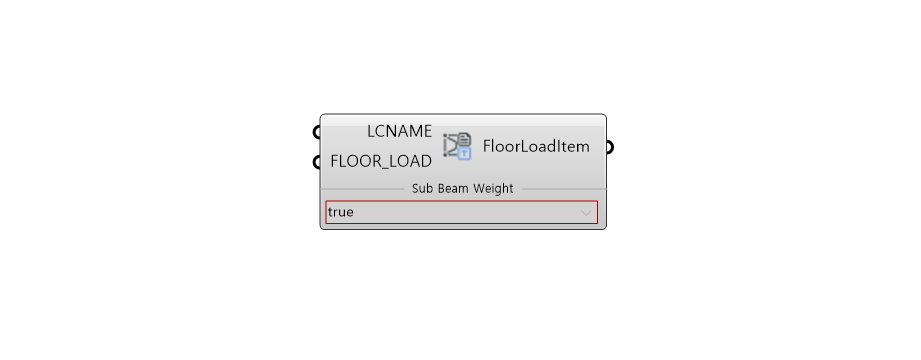

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LCNAME | Load Case Name | String | - | - |
| 2 | FLOOR_LOAD | Floor Load Value | Real | - | - |
| 3 | Sub Beam Weight | Sub Beam Weight Option | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Floor Load Item | Json | - | Define Floor Load |
5. Reference API Manual Link
