1. Description

This component operates the Traffic Line Lanes function in Civil NX.
Enter the traffic (line) lanes for moving load analysis.

The Traffic Line Lanes function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Traffic Line Lanes] Menu > [Traffic Line Lanes]

2. Grasshopper Path

[Midas] > [Moving Load] > [Traffic Line Lanes]

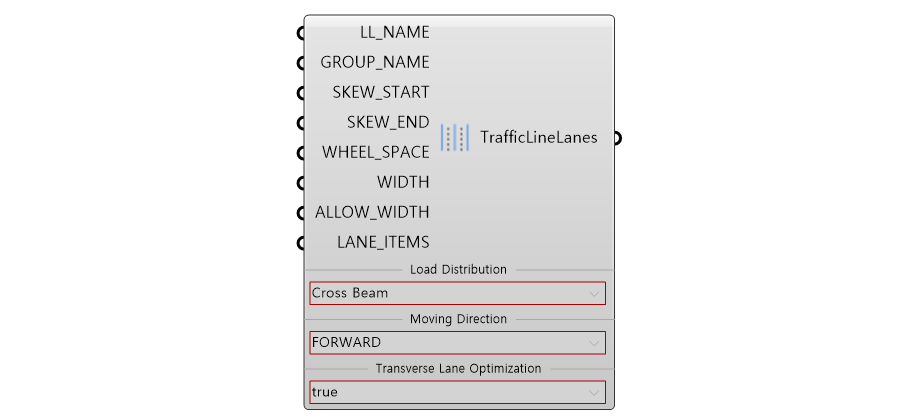

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	LL_NAME	Name of Line Lane	String	-	-
2	GROUP_NAME *	Name of Structure Group	String	-	-
3	SKEW_START *	Skew_Start	String	-	-
4	SKEW_END *	Skew_End	String	-	-
2	WHEEL_SPCE	Wheel Spacing	Real	0	-
3	WIDTH	Lane Width	Real	0	-
3	ALLOW _WIDTH **	Allow Width for Optimization	Real	0	-
4	LANE_ITEMS	Define Lane Items	Object	-	Lane Items of Traffic LineLanes
5	Load Distribution	Load Distribution	Select	Lane Element	-
6	Moving Direction	Moving Direction	Select	FORWARD	-
7	Transverse Lane Optimization	Transverse Lane Optimization	Select	false	-

Activation Condition
* Only for if Load Distribution Type is Cross Beam
** Only for if Transverse Lane Optimization is True

Output Data

Index	Command	Description	Type	Method	Next Component
1	LLAN	Create Traffic Line Lanes	Json	PUT/DELETE	-

5. Reference API Manual Link

Traffic Line Lanes
