1. Description
This component operates the Traffic Surface Lanes function in Civil NX.
Enter the traffic surface lanes for moving load analysis.
The Lane Items of Trafific Surface Lanes function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Traffic Surface Lanes] Menu > [Traffic Surface Lanes]
2. Grasshopper Path
[Midas] > [Moving Load] > [Lane Items of Traffic Surface Lanes]

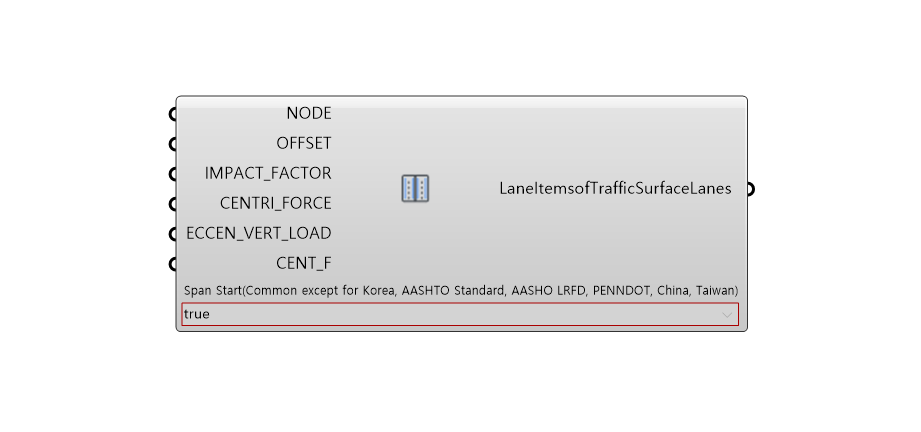

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NODE | Node NO. | Integer | - | - |
| 2 | OFFSET | Offset Distance to Lane Center | Real | 0 | - |
| 3 | IMPACT_FACTOR | Impact Factor | Real | 0 | - |
| 4 | CENTRI_FORCE |
Centrifugal force factor (AASHTO LRFD Only) |
Real | 0 | - |
| 5 | ECCEN_VERT _LOAD |
Eccentricity of Vertical Loads to Consider Cant (Eurocode Only) |
Real | 0 | - |
| 6 | CENT_F | Centrifugal force factor (AASHTO LRFD Only) | Real | 0 | - |
| 7 | Span Start | Span Start (Korea, AASHTO Standard, AASHTO LRFD, PENNDOT, China, Taiwan , Australia, Poland code Only) |
Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Lane Items of Traffic Surface Lanes | Object | - | Traffic Surface Lanes |
5. Reference API Manual Link
