1. Description
This component operates the Vehicels Korea function in Civil NX.
Enter vehicle loads specified in Korea.
The Vehicels Korea function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles Korea]
Standard Code Type 1 : Korea
(KS-RB, KS2005, KS-TR2012, KS-TR, KS-TR2004)

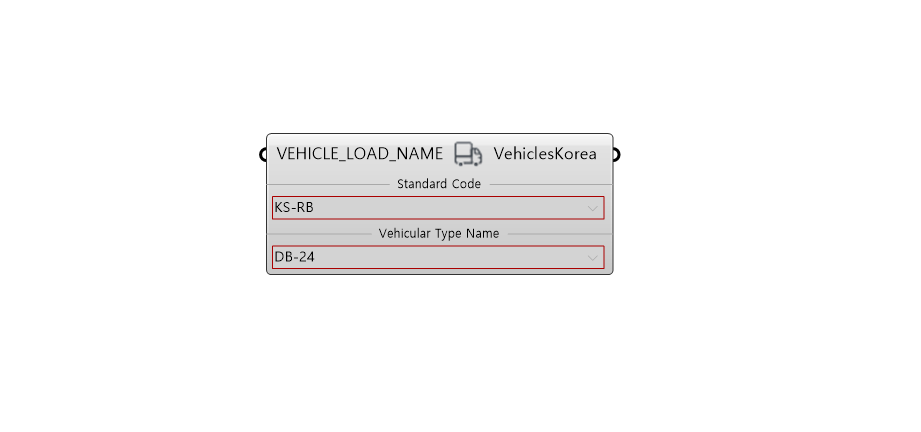

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Standard Code | Standard Code | Select | KS-RB | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle Korea (Korea Standard Code) |
Json | PUT/DELETE | - |
Standard Code Type 2 : AASHTO
(AASHTO-STD, AASHTO-LRFD)

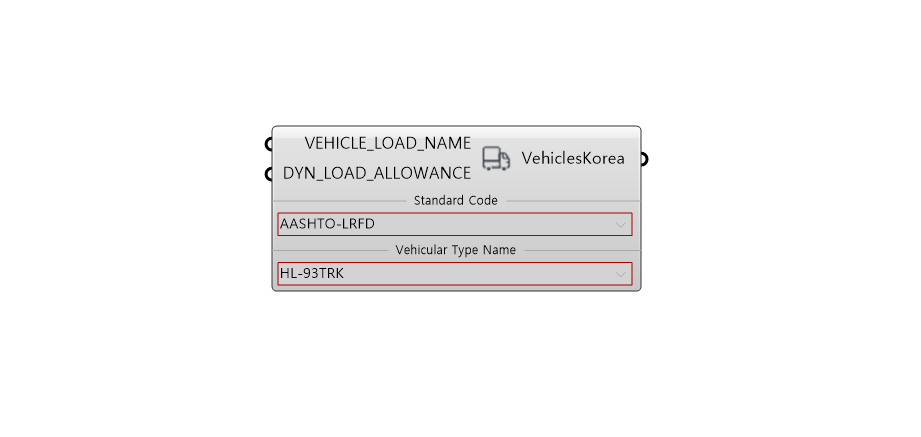

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | DYN_LOAD _ALLOWANCE * |
Dynamic Load Allowance | Real | 0 | - |
| 3 | Standard Code | Standard Code | Select | KS-RB | - |
| 4 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
Activation Condition
* Only for if Standard Code is AASHTO-LRFD
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle Korea (AASHTO Standard Code) |
Json | PUT/DELETE | - |
Standard Code Type 3 : CALTRANS
(CALTRANS_2017, CALTRANS)

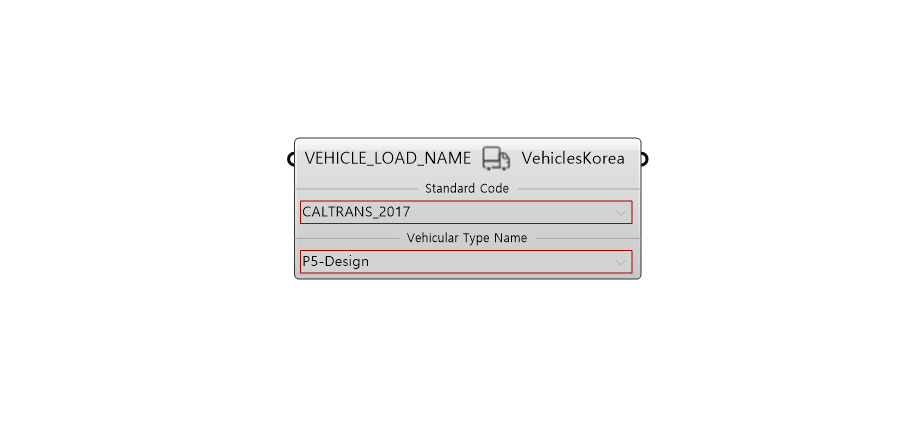

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Standard Code | Standard Code | Select | KS-RB | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle Korea (CALTRANS Standard Code) |
Json | PUT/DELETE | - |
Standard Code Type 4 : OHTERS

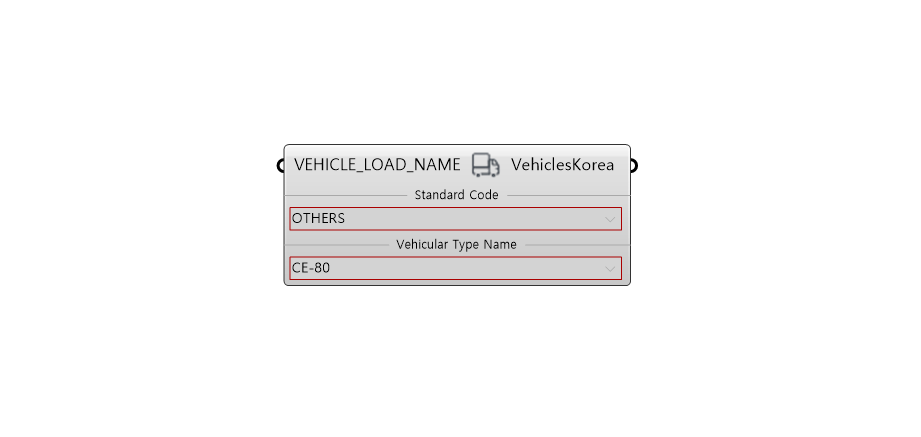

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Standard Code | Standard Code | Select | KS-RB | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle Korea (Ohters Standard Code) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
