1. Description
This component operates the Moving Load Cases Korea function in Civil NX.
Use the entered vehicle load classes and the traffic lanes to create moving load cases. Define type of vehicle, number of lanes, and the method to be used in moving load analysis.
The Moving Load Cases Korea function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Moving Load Cases] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Moving Load Cases Korea]
Lane Factor Type1 : Multi Lane Factor in KS Rail Load
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LCNAME | Load Case Name | String | - | - |
| 2 | DESC | Description | String | - | - |
| 3 | _2_LANE_FACTOR _1~2 |
2Lane Factor | Real | - | - |
| 4 | _3_LANE_FACTOR _1~4 |
above 3Lane Factor | Real | - | - |
| 5 | SUB_LOAD_DATAS | Sub-Load Cases | Object | - | Sub Load Data of Moving Load Cases |
| 6 | Combination Option | Loading Effect | Select | Combined | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVLD | Create Moving Load Cases (Multi Lane Factor in KS Rail Load Type) |
Json | PUT/DELETE | - |
Lane Factor Type2 : Multiple Presence Factor

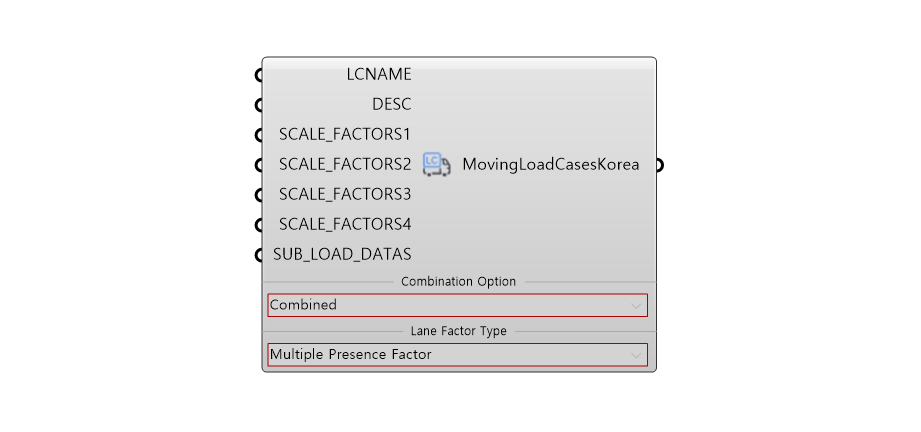

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LCNAME | Load Case Name | String | - | - |
| 2 | DESC | Description | String | - | - |
| 3 | SCALE_FACTORS 1~5 |
Scale Factor | Real | - | - |
| 4 | SUB_LOAD_DATAS | Sub-Load Cases | Object | - | Sub Load Data of Moving Load Cases |
| 5 | Combination Option | Loading Effect | Select | Combined | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVLD | Create Moving Load Cases (Multiple Presence Factor Type) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
