1. Description
This component operates the Vehicles PENNDOT function in Civil NX.
Enter vehicle loads specified in PENNDOT.
The Vehicles PENNDOT function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles PENNDOT]
Standard Code TYPE 1 : PENNDOT

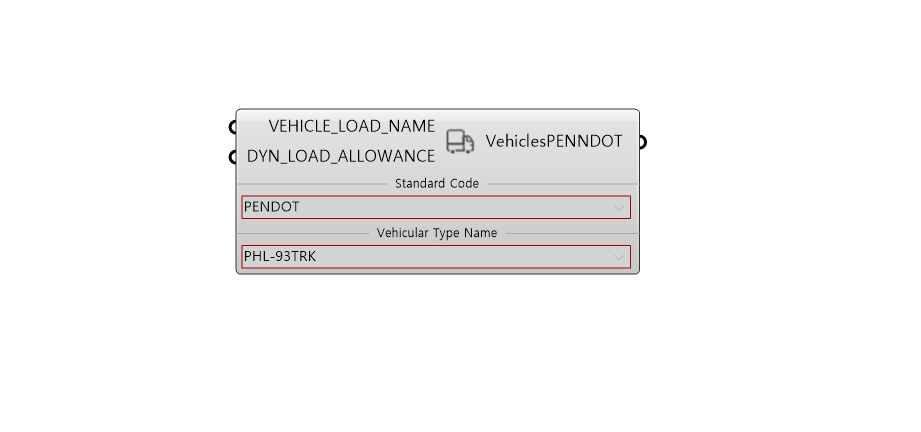

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | DYN_LOAD _ALLOWANCE |
Dynamic Load Allowance | Real | 0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | H15-44 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles PENNDOT (PENNDOT Standard Code) |
Json | PUT/DELETE | - |
Standard Code TYPE 2 : OTHERS

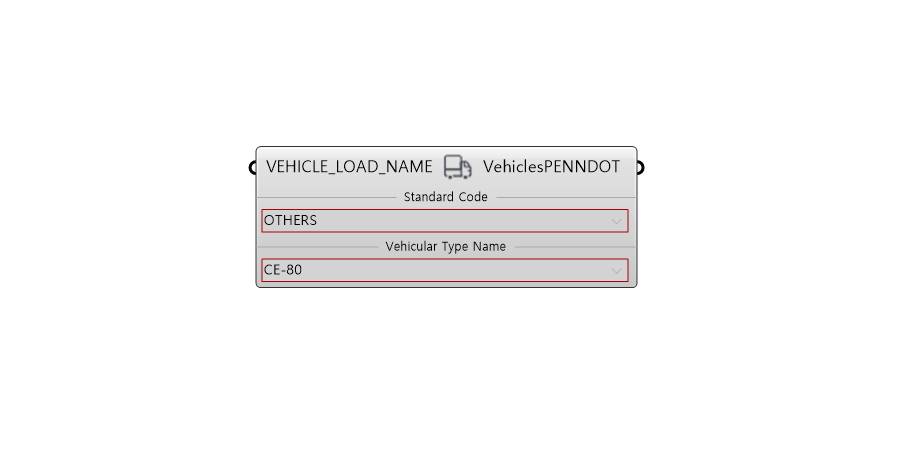

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Vehicular Type Name |
Vehicular Type Name | Select | CE-80 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles PENNDOT (OTHERS Standard Code) |
Json | PUT/DELETE | - |
