개요
• Tendon Profile을 조합하여 Longitudinal Tendon을 생성합니다.
실행
[Curve Library / Assembly Unit Mode]
• Ribbon Menu > [Model] Tab > [Component] Group > Tendon > Create
설명

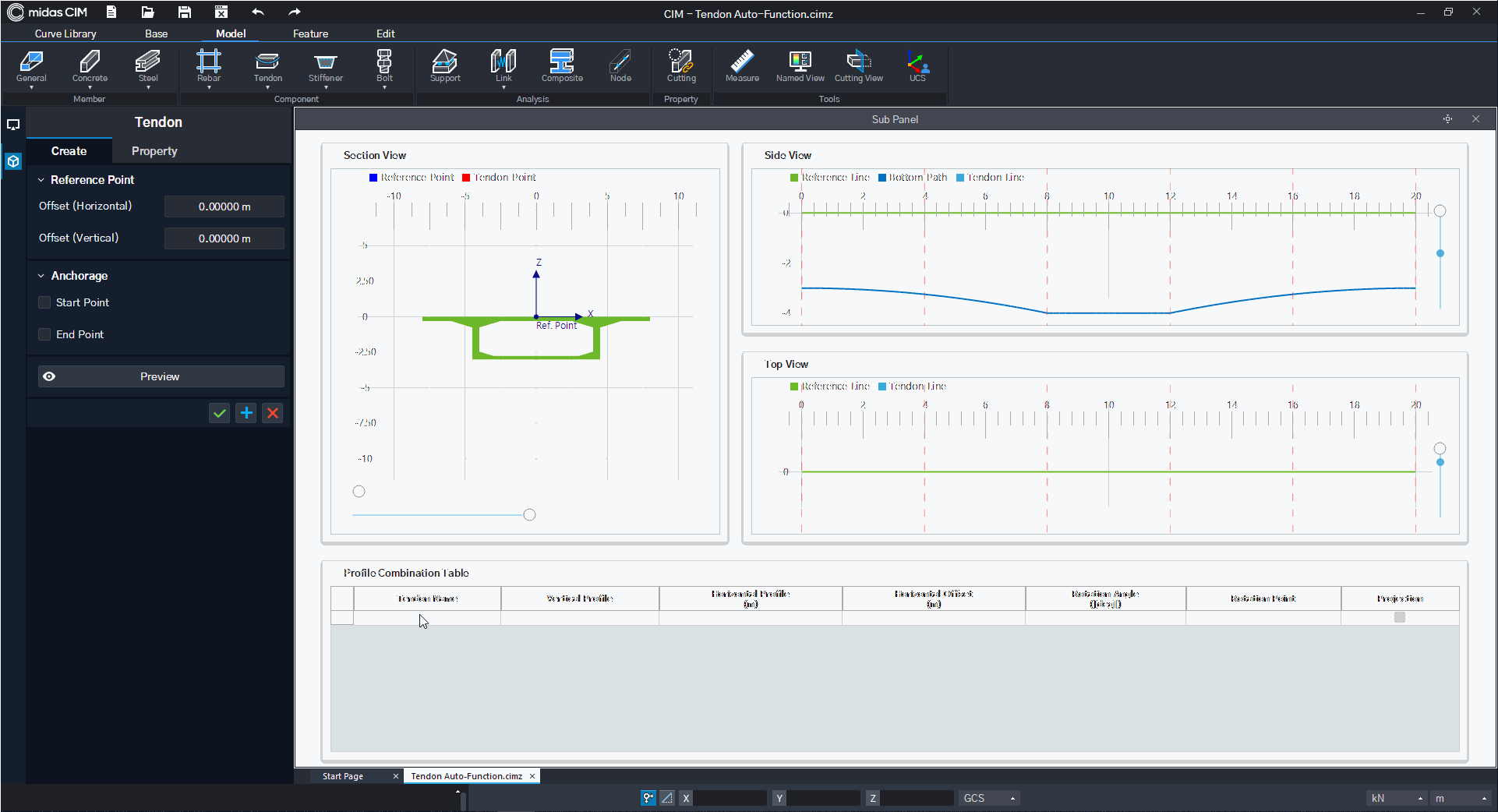

Tendon Combination
Tendon Profile을 조합하여 Tendon을 생성합니다.
[Tab] Create
• [Reference Point]
텐던 좌표의 기준 원점을 정의합니다.
Offset (Horizontal / Vertical) : Tendon Path의 시작점으로부터 입력값만큼 수평/수직으로 이동시켜 Reference point를 정의합니다.
• [Anchorage]
Anchorage 기능에서 정의한 텐던의 Anchorage를 설정합니다.
• [Preview]
생성되는 텐던의 Preview를 보여줍니다.
[Tab] Property
Tendon Property
Sub Panel
• [Section View]
텐던 진행방향 단면의 View입니다.
Tendon Point와 Reference Point의 위치가 각각 빨간색, 파란색 점으로 단면에 표시됩니다.
Section View 하단의 위쪽 다이얼의 위치는 현재 단면이 위치한 Station을 나타냅니다. (좌측→우측)
Section View 하단의 아래쪽 다이얼은 Tendon name의 Size를 조절할 수 있습니다.
• [Side View]
텐던 진행방향의 측면 View를 나타냅니다. 즉, 설정한 Vertical Profile의 배치를 나타냅니다.
• [Top View]
텐던 진행방향의 상부면 View를 나타냅니다. 즉, 설정한 Horizontal Profile의 배치를 나타냅니다.
• [Profile Combination Table]
Vertical Profile 및 Horizontal Profile을 조합하고, Tendon을 3D 공간 상에 배치합니다.
• Tendon Name : 텐던의 이름을 입력합니다.
• Vertical Profile : Vertical Profile을 선택합니다.
• Horizontal Profile : Horizontal Profile을 선택합니다.
Verical / Horizontal Profile은 Tendon Group에서 설정한 Profile Group 내에서 선택 가능합니다.
• Tendon Group (Setting)
• Tendon Profile
• Horizontal Offset : Reference Point를 기준으로 Tendon을 수평방향(Y-Dir.)으로 이동하기 위해 Offset 값을 입력합니다.
• Rotation Angle : 회전 축을 기준으로 회전할 각도를 입력합니다.
• Rotation Point : 텐던의 참조점(Reference Point)을 지나는 축을 설정합니다.
• Projection : 텐던의 투영 여부를 선택합니다.
Off : 텐던 프로파일을 축을 기준으로 회전합니다.
On : 텐던 프로파일을 축을 기준으로 회전된 평면으로 투영합니다. (주로 Offset-Z 값을 유지하기 위해 사용)
참고자료
• Tendon Group (Setting)
• Tendon Profile
• Tendon Property
