1. Description
This component operates the Vehicles EUROCODE function in Civil NX.
Enter vehicle loads specified in EUROCODE.
The Vehicles EUROCODE function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles EUROCODE]

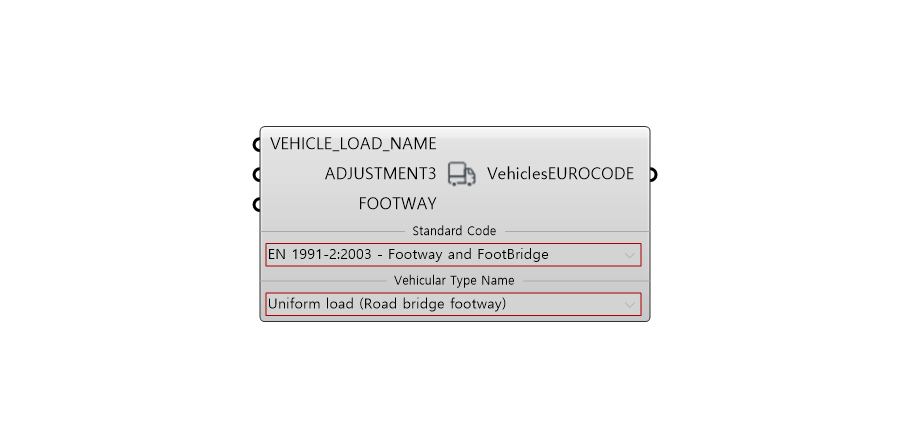

Uniform Load(Road Bridge Footway)
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | ADJUSTMENT3 | Ψ Factor | Real | 0.4 | - |
| 3 | FOOTWAY | Footway(W) | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE(EN 1991-2:2003-Footway and FootBridge - Uniform load (Road Bridge Footway)) | Json | PUT/DELETE | - |

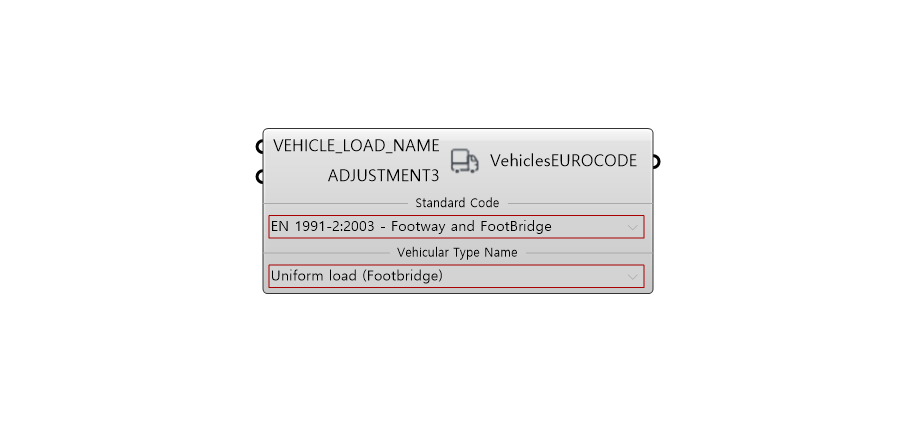

Uniform Load(FootBridge)
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | ADJUSTMENT2 | Ψ Factor | Real | 0.4 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE(EN 1991-2:2003-Footway and FootBridge - Uniform load (FootBridge)) | Json | PUT/DELETE | - |

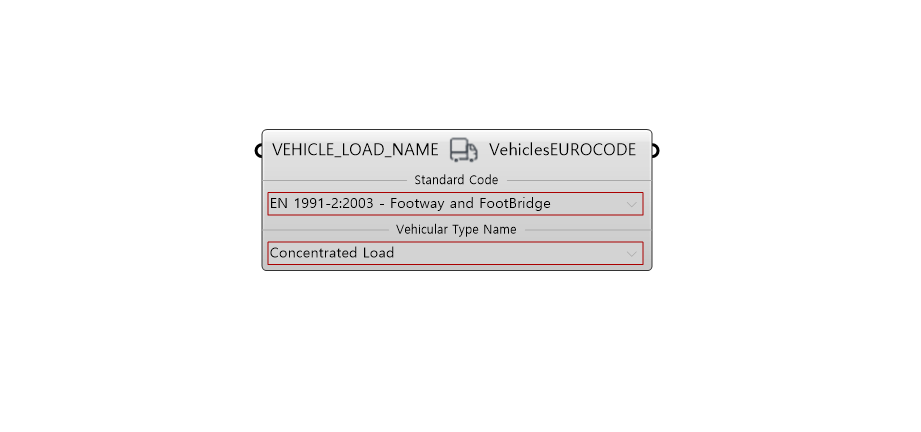

Concentrated Load
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE(EN 1991-2:2003-Footway and FootBridge - Concentrated Load) | Json | PUT/DELETE | - |

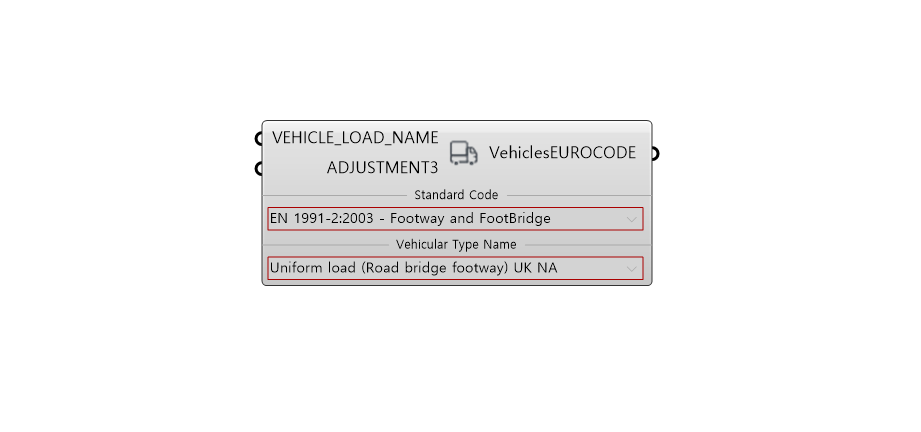

Uniform Load(Road Bridge Footway) UK NA
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | ADJUSTMENT3 | Ψ Factor | Real | 0.4 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE(EN 1991-2:2003-Footway and FootBridge - Uniform load (Road Bridge Footway)UK NA) | Json | PUT/DELETE | - |
