Composite

개요

• 1D Beam 모델에 합성 슬라브를 적용하는 기능입니다.




실행

• Ribbon Menu > [Model] Tab > [Analysis] Group > Composite




설명

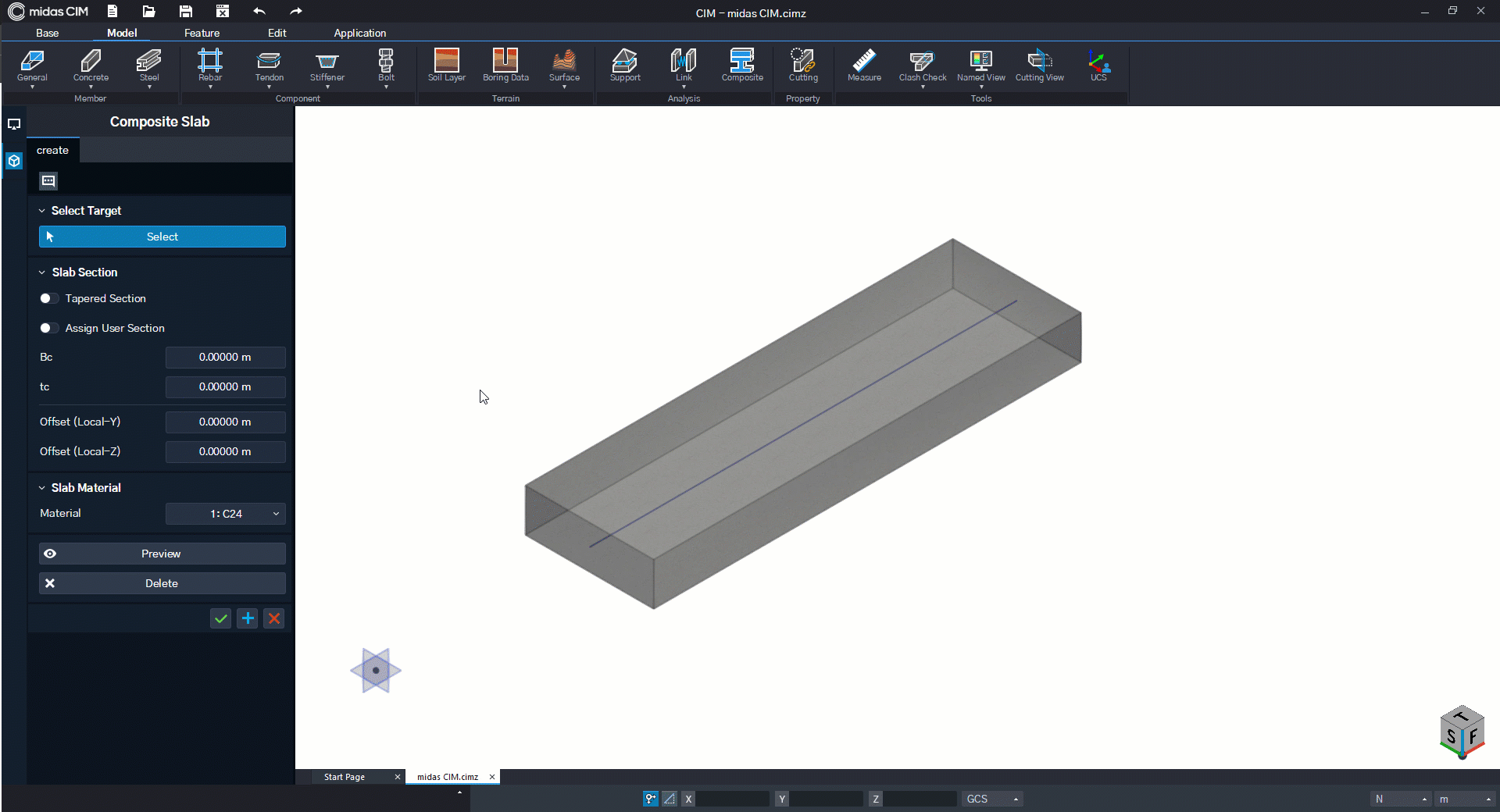

Composite Slab 생성

Composite Slab를 생성하는 기능입니다.





• [Select Target]

Composite Slab를 생성할 1D Member를 선택합니다.

• [Slab Section]

Composite Slab의 속성을 정의합니다.

Tapered Section

On일 때 Start, End의 Bc, tc값을 각각 입력할 수 있습니다.

Assign User Section

On일 때 User Section을 Slab의 단면으로 사용할 수 있습니다.

Bc : Slab의 너비

tc : Slab의 두께

Offset (Local-Y) : 슬라브의 Local Y축 방향으로의 Offset 값

Offset (Local-Z) : 슬라브의 Local Z축 방향으로의 Offset 값

• [Slab Material]

생성될 Slab의 Material을 설정합니다.

• [Preview]

Preview가 생성됩니다.

• [Delete]

생성한 Slab를 삭제합니다.

Note

Composite Slab는 생성 후 Analysis Mode 진입 시에만 나타납니다.
