1. Description
This component operates the Sub Load Data of Moving Load Cases Eurocode function in Civil NX.
Use the entered vehicle load classes and the traffic lanes to create moving load cases. Define type of vehicle, number of lanes, and the method to be used in moving load analysis.
The Sub Load Data of Moving Load Cases Eurocode function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Moving Load Cases] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Sub Load Data of Moving Load Cases Eurocode]

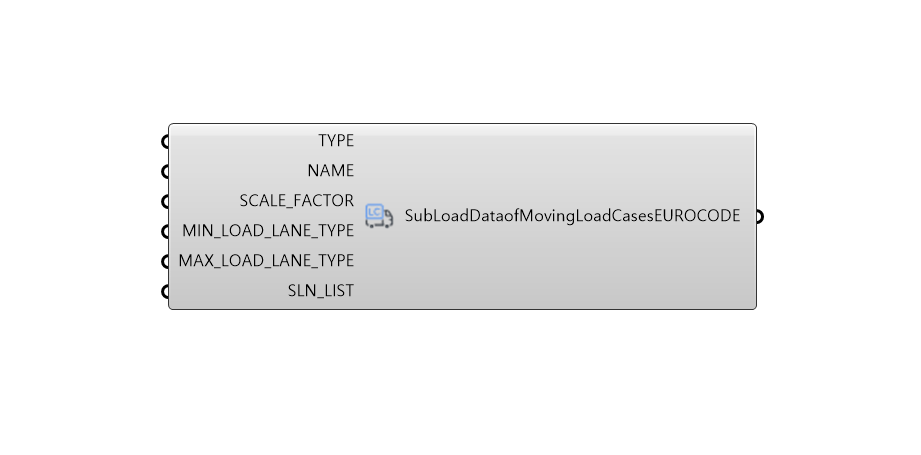

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | TYPE | Type of Vehicle Class
· Vehicle Class : "2" |
String | - | - |
| 2 | NAME | Name of Vehicle Class | String | - | - |
| 3 | SCALE_FACTOR | Scale Factor | Real | - | - |
| 4 | MIN_LOADED _LANE_TYPE |
Min. Number of Loaded Lane | Integer | - | - |
| 5 | MAX_LOADED _LANE_TYPE |
Max. Number of Loaded Lane | Integer | - | - |
| 6 | SLN_LIST | Selected Lane | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Sub Load Data of Moving Load Cases Eurocode | Object | - | Moving Load Cases Eurocode |
