1. Description
This component operates the Pre-tension Tendon Property function in Civil NX.
Define the tendon properties such as tendon area and instantaneous prestress losses.
The Pre-tension Tendon Property function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Property] Menu
2. Grasshopper Path
[Midas] > [Prestress] > [Pre-tension Tendon Property]
Code Group1 - Magura, IRC:18-2000, IRC:112-2011, KSCE LSD15

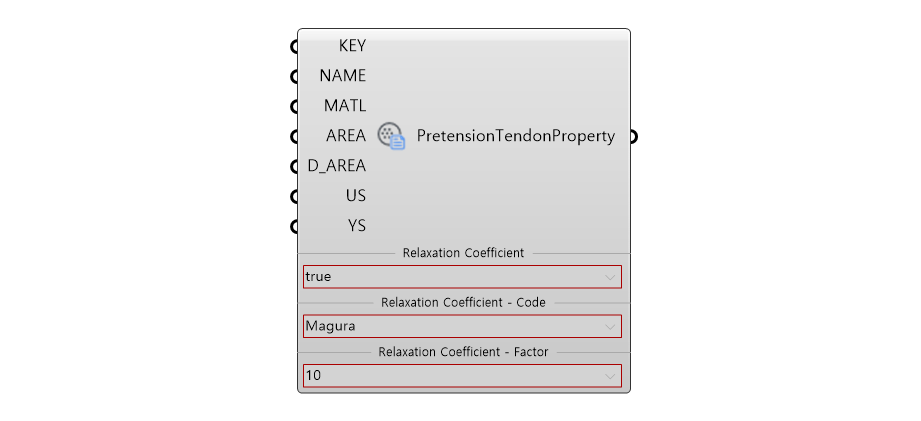

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 9 | Relaxation Coefficient - Factor * |
Factor of Relaxation Coefficient
· Megura : 10 / 45 |
Select | 10 Normal Ordinary |
- |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create Pre-tension Tendon Property (Magura, IRC:18-2000, IRC:112-2011, KSCE LSD15) |
Json | PUT/DELETE | - |

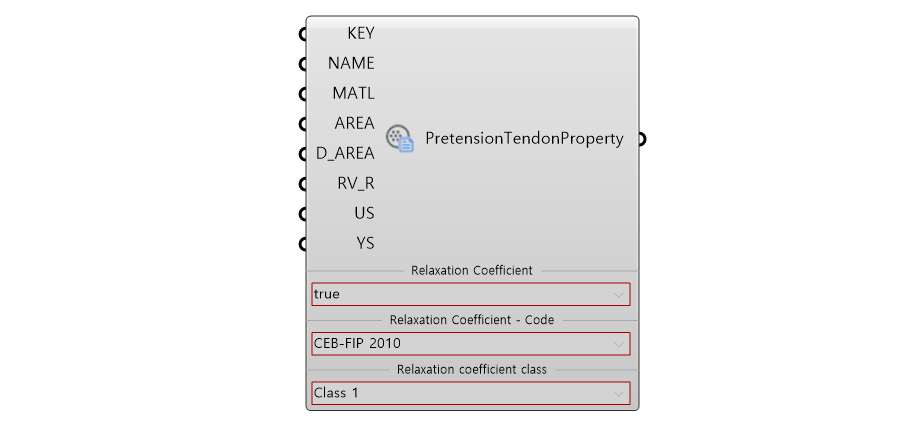

Code Group2 - CEB-FIP 1978, 1990, 2010, European
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6-1 | RV_R * | Factor of Relaxation Coefficient (CEB-FIP Only) |
Real | 0 | - |
| 6-2 | Relaxation Coefficient - Factor * |
Factor of Relaxation Coefficient (European Only) · European :Ordinary / |
Select | Ordinary | - |
| 7 | US | Ultimate Strength | Real | 0 | - |
| 8 | YS | Yield Strength | Real | 0 | - |
| 9 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 10 | Relaxation Coefficient Class * |
Class of Relaxation Coefficient
· CEB-FIP 2010 : Class 1,2,3 |
Select | Class 1 | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create Pre-tension Tendon Property (CEB-FIP 1978, 1990, 2010, European) |
Json | PUT/DELETE | - |

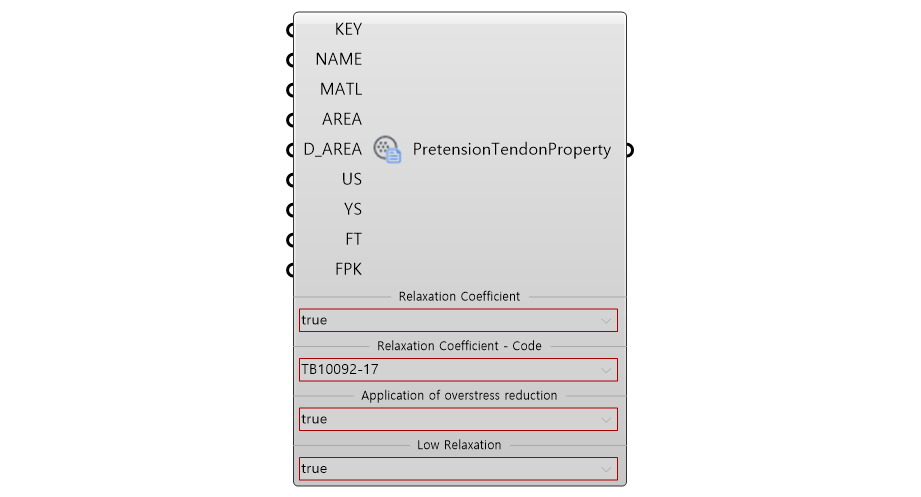

Code Group3 - TB05, TB10092-17, Q/CR 9300-18
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FT * | Factor of Relaxation Coefficient | Real | - | - |
| 9 | FPK | Characteristic Value of Strength | Real | - | - |
| 10 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 11 | Application of Overstress Reduction Factor | Application of Overstress Reduction Factor | Select | true | - |
| 12 | Low Relaxation | Low Relaxation | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create Pre-tension Tendon Property (TB05, TB10092-17, Q/CR 9300-18) | Json | PUT/DELETE | - |

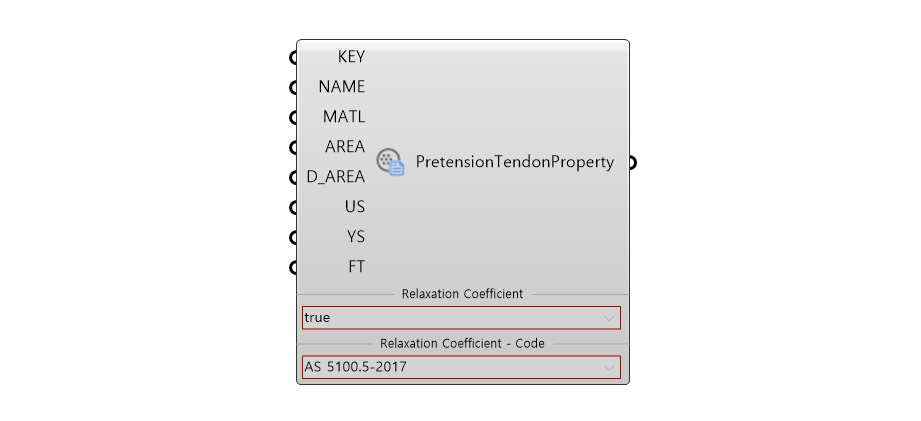

Code Group4 - AS 5100.5-2017
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FT * | Factor of Relaxation Coefficient | Real | - | - |
| 9 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create Pre-tension Tendon Property (AS 5100.5-2017) |
Json | PUT/DELETE | - |

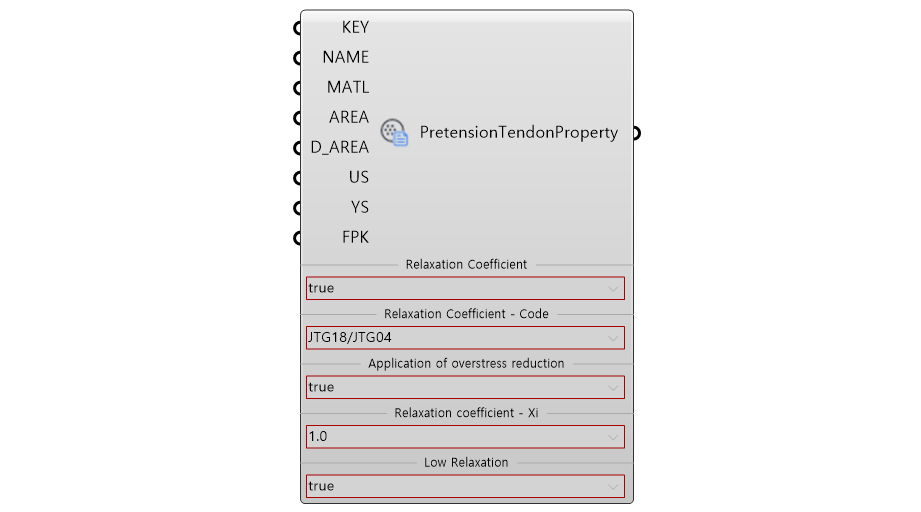

Code Group5 - JTG18/JTG04
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FPK | Characteristic Value of Strength | Real | - | - |
| 9 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 10 | Application of Overstress Reduction Factor | Application of Overstress Reduction Factor | Select | true | - |
| 11 | Relaxation Coefficient - Xi * | Factor of Relaxation Coefficient | Select | 1.0 | - |
| 12 | Low Relaxation | Low Relaxation | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create Pre-tension Tendon Property (JTG18/JTG04) |
Json | PUT/DELETE | - |

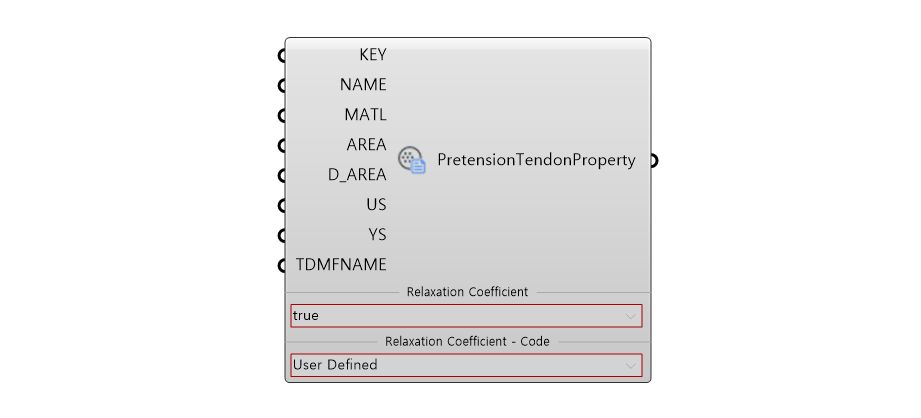

Code Group6 - User Defined
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | TDMFNAME * | Relaxation Function Name | String | - | - |
| 9 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create Pre-tension Tendon Property (User Defined) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
