1. Description
This component operates the External Tendon Property function in Civil NX.
Define the tendon properties such as tendon area and instantaneous prestress losses.
The External Tendon Property function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Property] Menu
2. Grasshopper Path
[Midas] > [Prestress] > [External Tendon Property]
Code Group1 - Magura, IRC:18-2000, IRC:112-2011, KSCE LSD15

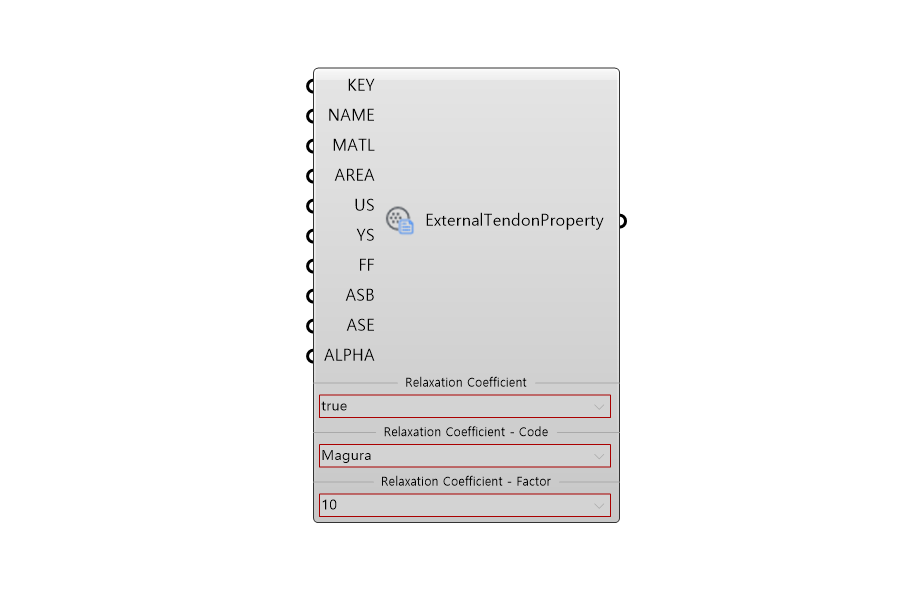

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FF | Curvature Friction Factor | Real | 0 | - |
| 9 | ASB | Anchorage Slip - Begin | Real | 0 | - |
| 10 | ASE | Anchorage Slip - End | Real | 0 | - |
| 11 | ALPHA | External Cable Moment Magnifier | Real | 0 | - |
| 12 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 13 | Relaxation Coefficient - Factor * |
Factor of Relaxation Coefficient
· Megura : 10 / 45 |
Select | 10 Normal Ordinary |
- |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create External Tendon Property (Magura, IRC:18-2000, IRC:112-2011, KSCE LSD15) |
Json | PUT/DELETE | - |
Code Group2 - CEB-FIP 1978, 1990, 2010, European

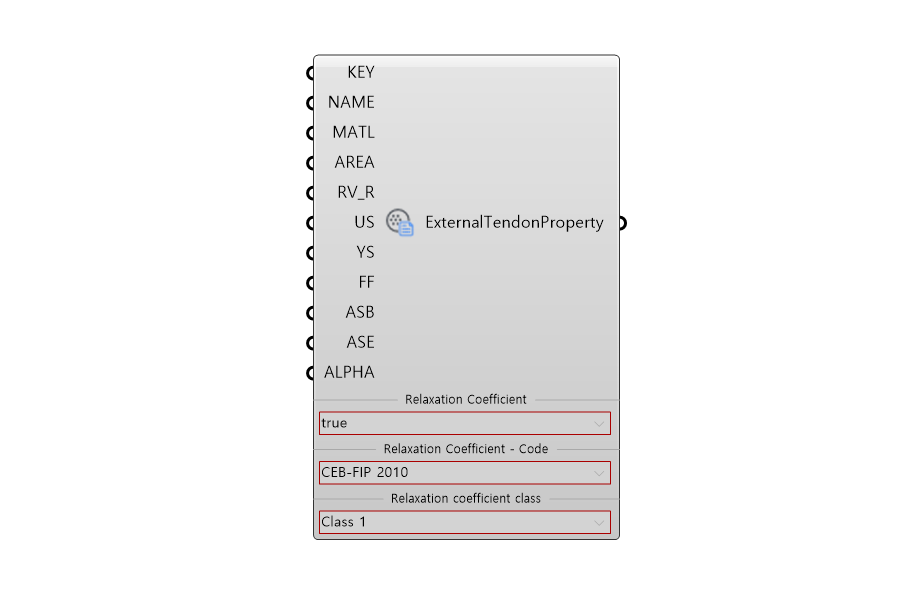

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6-1 | RV_R * | Factor of Relaxation Coefficient (CEB-FIP Only) |
Real | 0 | - |
| 6-2 | Relaxation Coefficient - Factor * |
Factor of Relaxation Coefficient (European Only) · European :Ordinary / |
Select | Ordinary | - |
| 7 | US | Ultimate Strength | Real | 0 | - |
| 8 | YS | Yield Strength | Real | 0 | - |
| 8 | FF | Curvature Friction Factor | Real | 0 | - |
| 10 | ASB | Anchorage Slip - Begin | Real | 0 | - |
| 11 | ASE | Anchorage Slip - End | Real | 0 | - |
| 12 | ALPHA | External Cable Moment Magnifier | Real | 0 | - |
| 13 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 14 | Relaxation Coefficient Class * |
Class of Relaxation Coefficient
· CEB-FIP 2010 : Class 1,2,3 |
Select | Class 1 | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create External Tendon Property (CEB-FIP 1978, 1990, 2010, European) |
Json | PUT/DELETE | - |
Code Group3 - TB05, TB10092-17, Q/CR 9300-18

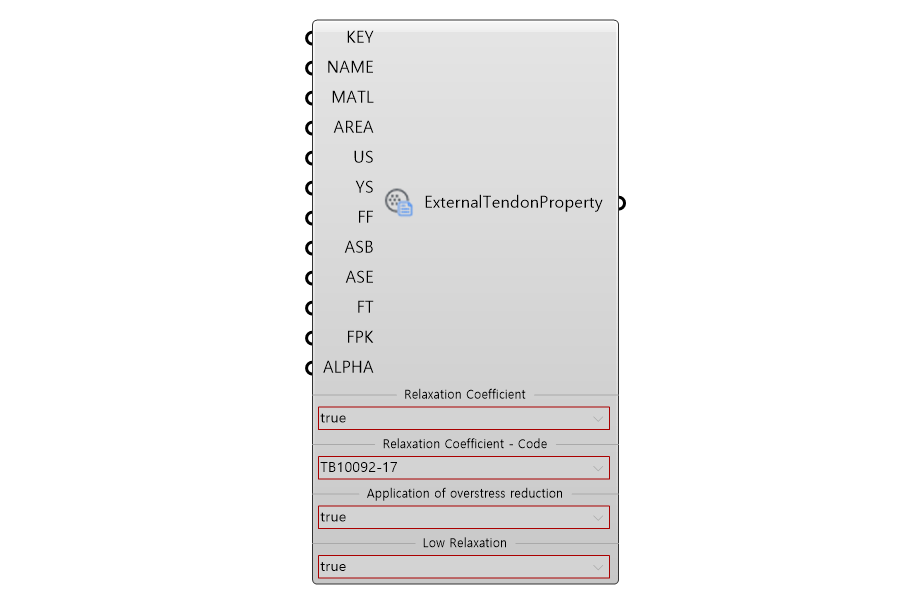

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FF | Curvature Friction Factor | Real | 0 | - |
| 9 | ASB | Anchorage Slip - Begin | Real | 0 | - |
| 10 | ASE | Anchorage Slip - End | Real | 0 | - |
| 11 | FT * | Factor of Relaxation Coefficient | Real | - | - |
| 12 | FPK | Characteristic Value of Strength | Real | - | - |
| 13 | ALPHA | External Cable Moment Magnifier | Real | 0 | - |
| 14 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 15 | Application of Overstress Reduction Factor | Application of Overstress Reduction Factor | Select | true | - |
| 16 | Low Relaxation | Low Relaxation | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create External Tendon Property (TB05, TB10092-17, Q/CR 9300-18) | Json | PUT/DELETE | - |
Code Group4 - AS 5100.5-2017

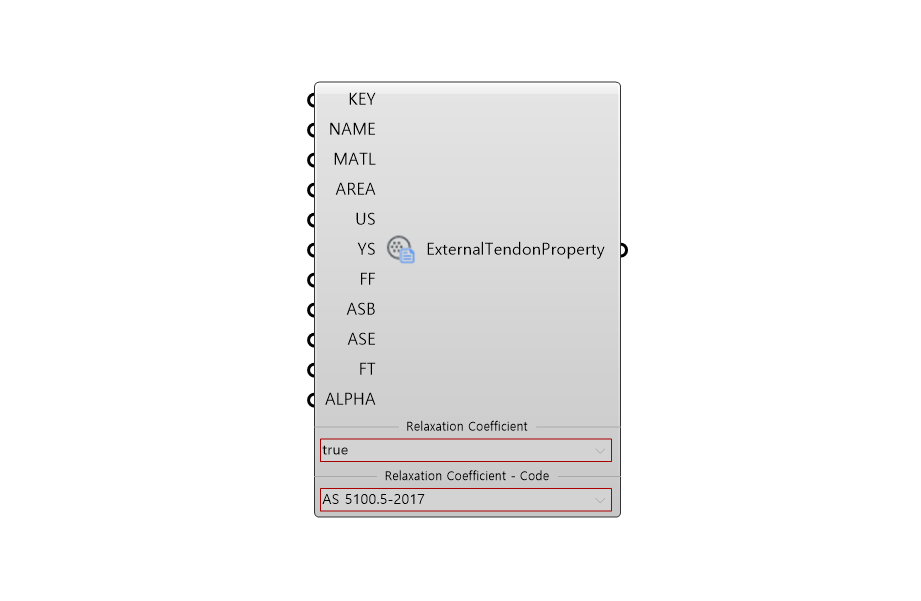

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FF | Curvature Friction Factor | Real | 0 | - |
| 9 | ASB | Anchorage Slip - Begin | Real | 0 | - |
| 10 | ASE | Anchorage Slip - End | Real | 0 | - |
| 11 | FT * | Factor of Relaxation Coefficient | Real | - | - |
| 12 | ALPHA | External Cable Moment Magnifier | Real | 0 | - |
| 13 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create External Tendon Property (AS 5100.5-2017) |
Json | PUT/DELETE | - |
Code Group5 - JTG18/JTG04

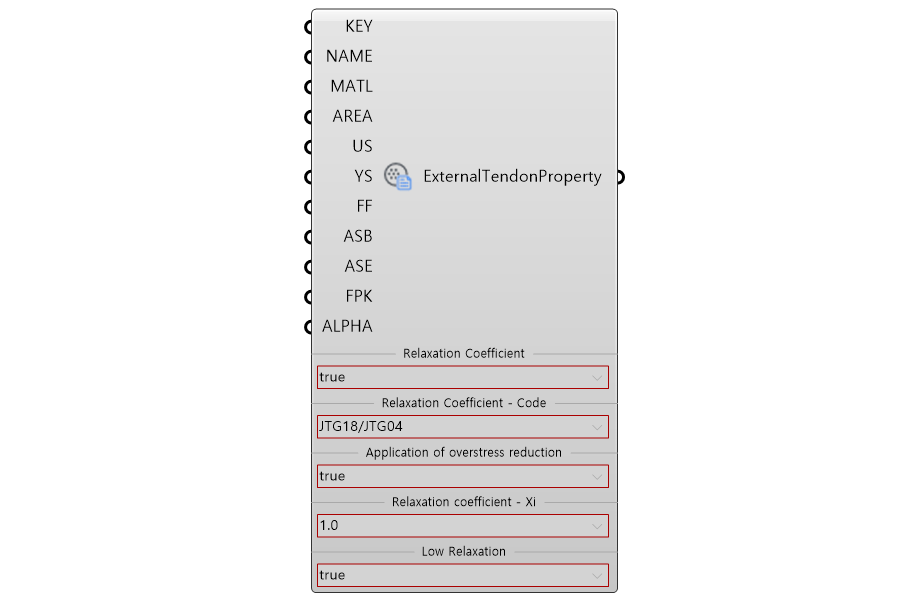

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FF | Curvature Friction Factor | Real | 0 | - |
| 9 | ASB | Anchorage Slip - Begin | Real | 0 | - |
| 10 | ASE | Anchorage Slip - End | Real | 0 | - |
| 11 | FPK | Characteristic Value of Strength | Real | - | - |
| 12 | ALPHA | External Cable Moment Magnifier | Real | 0 | - |
| 13 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
| 14 | Application of Overstress Reduction Factor | Application of Overstress Reduction Factor | Select | true | - |
| 15 | Relaxation Coefficient - Xi * | Factor of Relaxation Coefficient | Select | 1.0 | - |
| 16 | Low Relaxation | Low Relaxation | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create External Tendon Property (JTG18/JTG04) |
Json | PUT/DELETE | - |
Code Group6 - User Defined

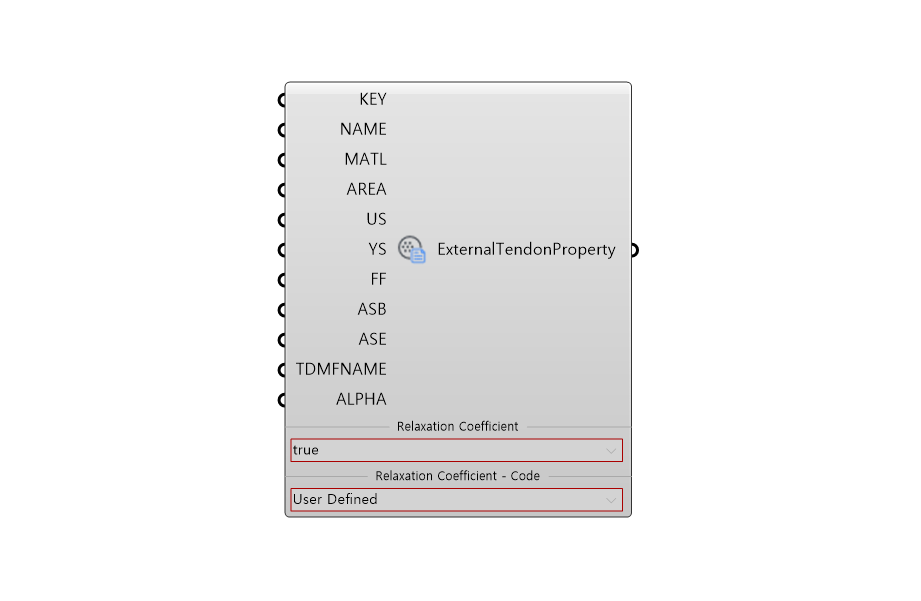

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Property ID | Integer | - | - |
| 2 | NAME | Tendon Name | String | - | - |
| 3 | MATL | Tendon Material No. | Integer | - | - |
| 4 | AREA | Total Tendon Area | Real | - | - |
| 5 | D_AREA | Diameter | Real | - | - |
| 6 | US | Ultimate Strength | Real | 0 | - |
| 7 | YS | Yield Strength | Real | 0 | - |
| 8 | FF | Curvature Friction Factor | Real | 0 | - |
| 9 | ASB | Anchorage Slip - Begin | Real | 0 | - |
| 10 | ASE | Anchorage Slip - End | Real | 0 | - |
| 11 | ALPHA | External Cable Moment Magnifier | Real | 0 | - |
| 12 | TDMFNAME * | Relaxation Function Name | String | - | - |
| 13 | Relaxation Coefficient | Activation Relaxation Coefficient | Select | true | - |
Activation Condition
* Only for if Relaxation Coefficient is true
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNT | Create External Tendon Property (User Defined) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
