1. Description
This component operates the Prestress Beam Loads in Civil NX.
Enter pre-stress loads for beams, or modify or delete previously entered loads.
The Prestress Beam Loads function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Prestress Beam Loads] Menu
2. Grasshopper Path
[Midas] > [Prestress] > [Prestress Beam Loads]

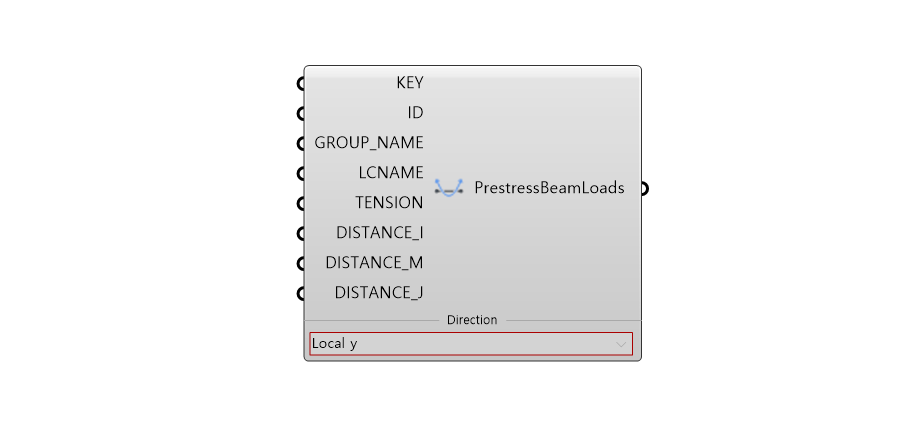

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Element NO. | Integer | - | - |
| 2 | ID | Serial Number | Integer | 1 | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | TENSION | Tension | Real | - | - |
| 6 | DISTANCE_I | Distance - I (Di) | Real | 0 | - |
| 7 | DISTANCE_M | Distance - M (Dm) | Real | 0 | - |
| 8 | DISTANCE_J | Distance - J (Dj) | Real | 0 | - |
| 9 | Direction | Direction | Select | Local y | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | PRST | Create Prestress Beam Loads | Json | PUT/DELETE | - |
5. Reference API Manual Link
