1. Description
This component operates the Define C.S function in Civil NX.
This function allows us to define necessary construction stages to analyze a bridge structure reflecting the effects of evolving structure configurations and elastic and time dependent (creep and shrinkage) displacements.
The Define C.S function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [Define C.S] Menu
2. Grasshopper Path
[Midas] > [Construction Stage] > [Define C.S]

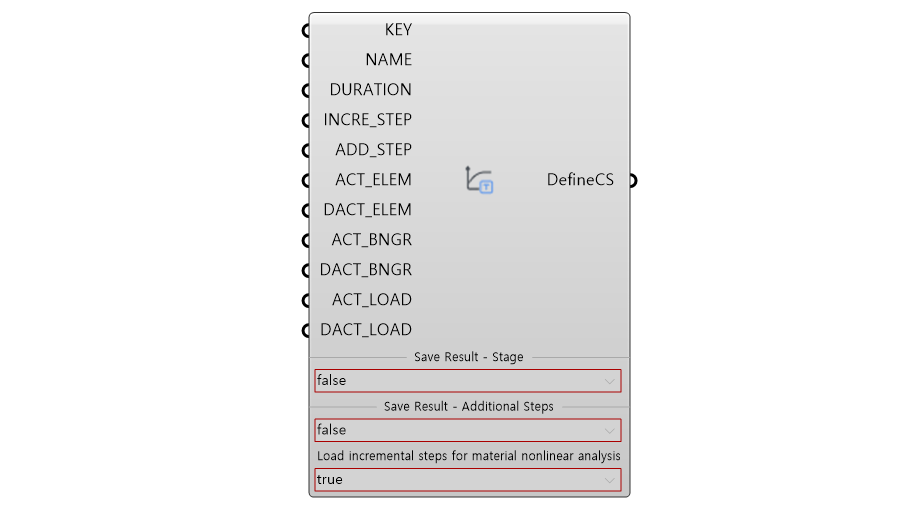

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | CS Stage ID | Integer | - | - |
| 2 | NAME | CS Stage Name | String | - | - |
| 3 | DURATION | CS Stage Duration | Integer | - | - |
| 4 | INCRE_STEP | Load Incremental Steps | Integer | - | - |
| 5 | ADD_STEP | Additional Step | Integer | - | - |
| 6 | ACT_ELEM | Activation Structure Group | Object | - | CS Act Structure Group |
| 7 | DACT_ELEM | Deactivation Structure Group | Object | - | CS Deact Structure Group |
| 8 | ACT_BNGR | Activation Boundary Group | Object | - | CS Act Boundary Group |
| 9 | DACT_BNGR | Deactivation Boundary Group | String | - | - |
| 10 | ACT_LOAD | Activation Load Group | Object | - | CS Act Load Group |
| 11 | DACT_LOAD | Deactivation Load Group | Object | - | CS Deact Load Group |
| 12 | Save Result - Stage | Save Result - Stage | Select | false | - |
| 13 | Save Result - Additional Steps | Save Result - Additional Steps | Select | false | - |
| 14 | Load Incremental steps for Material Nonlinear Analysis | Load Incremental steps for Material Nonlinear Analysis | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STAG | Create Define C.S | Json | PUT/DELETE | - |
