1. Description
This component operates the C.S Deact. Load Group function in Civil NX.
This function allows us to define necessary construction stages to analyze a bridge structure reflecting the effects of evolving structure configurations and elastic and time dependent (creep and shrinkage) displacements.
The C.S Deact. Load Group function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [Define C.S] Menu
2. Grasshopper Path
[Midas] > [Construction Stage] > [C.S Deact. Load Group]

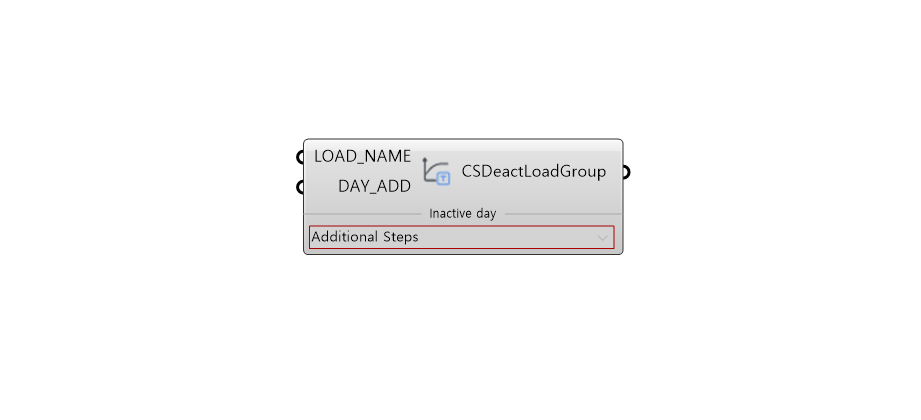

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LOAD_NAME | Deactivated Load Group Name | String | - | - |
| 2 | DAY_ADD * | Additional Steps Day | Real | - | - |
| 3 | Active day | Active day | Select | FIRST | - |
Activation Condition
* Only for if Active day is Additional Steps
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STAG | Create C.S Deact. Load Group | Object | - | Define C.S |
5. Reference API Manual Link
