1. Description
This component operates the Composite Section for C.S function in Civil NX.
Define an analytical model for each construction stage by assigning activated or inactivated sections corresponding to each construction stage of a composite bridge.
The Composite Section for C.S function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [Composite Section For C.S] Menu
2. Grasshopper Path
[Midas] > [Construction Stage] > [Composite Section for C.S]

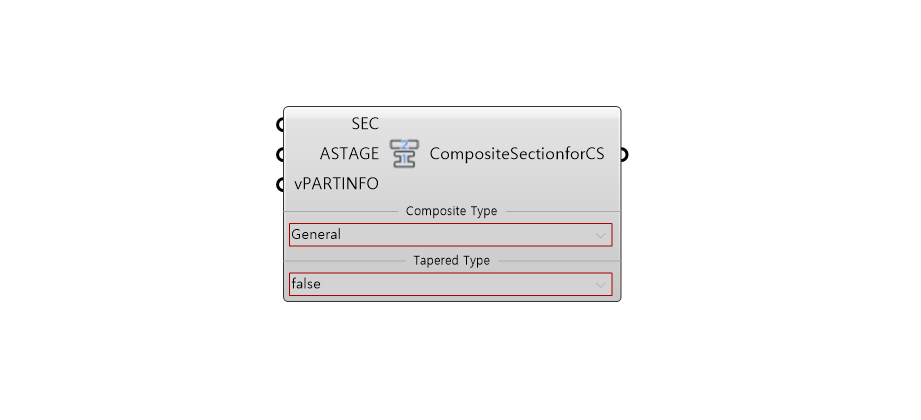

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SEC | Section ID | Integer | - | - |
| 2 | ASTAGE | Active Stage | String | - | - |
| 3 | vPARTINFO | Part Information | Object | - | Part Information of Composite Section for CS |
| 4 | Composite Type | Composite Type | Select | General | - |
| 5 | Tapered Type | Tapered Type | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | CSCS | Create Composite Section for C.S | Object | PUT/DELETE | - |
5. Reference API Manual Link
Composite Section for Construction Stage
