Part Information of Composite Section for C.S – MIDAS Support

1. Description

This component operates the Part Information of Composite Section for CS function in Civil NX.
Define an analytical model for each construction stage by assigning activated or inactivated sections corresponding to each construction stage of a composite bridge.

The Part Information of Composite Section for CS function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [Composite Section For C.S] Menu

2. Grasshopper Path

[Midas] > [Construction Stage] > [Part Information of Composite Section for CS]

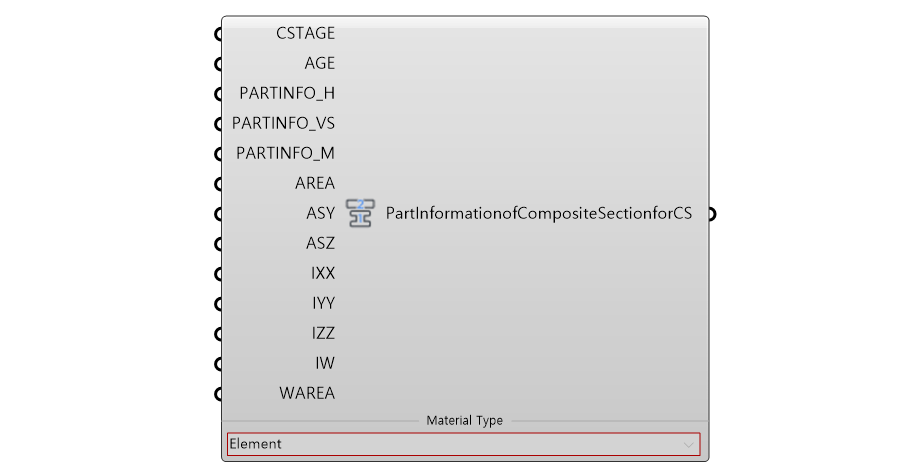

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	CSTAGE	Composite Stage	String	-	-
2	AGE	Material Age	Real	0	-
3	PARTINFO_H	Notional Size of Member	Real	0	-
4	PARTINFO_VS	Volume-Surface Ratio, v/s	Real	0	-
5	PARTINFO_M	Module of an exposed surface, M	Real	0	-
6	AREA ASY ASZ IXX IYY IZZ IW WAREA	Stiffeness Scale Factor · Area : "AREA" · Effective Shear Area, y-axis : "ASY" · Effective Shear Area, z-axis : "ASZ" · Torsional Resistance : "IXX" · Moment of Inertia, y-axis : "IYY" · Moment of Inertia, z-axis : "IZZ" · Warping Constant : "IW" · Weight : "WAREA"	Real	1	-
7	Materal Type	Materal Type	Select	Element	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	CSCS	Create Part Information of Composite Section for CS	Object	-	Composite Section for CS

5. Reference API Manual Link

Composite Section for Construction Stage
