1. Description
This component operates the Time Loads for C.S function in Civil NX.
Impose Time Load to specific members to reflect the time dependent material properties relative to the contiguous members.
The Time Loads for C.S function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [C.S Loads] Menu > [Time Loads for Construction Stage] Menu
2. Grasshopper Path
[Midas] > [Construction Stage] > [Time Loads for C.S]

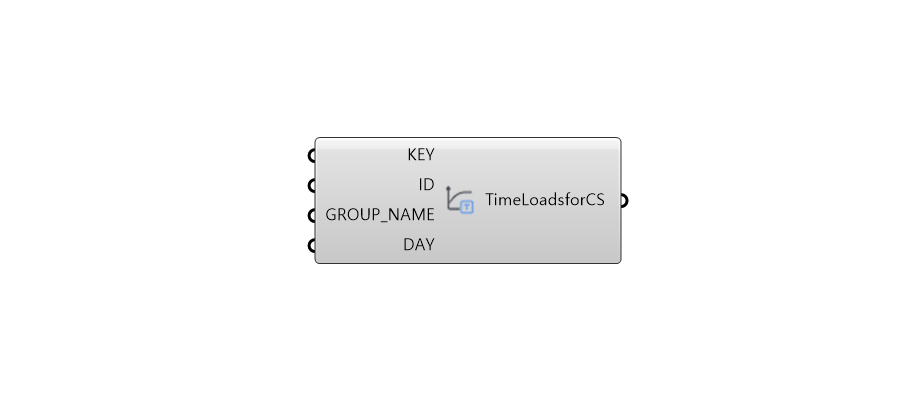

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Element No. | String | - | - |
| 2 | ID | Serial Number | Integer | 0 | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | DAY | Time Loads | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TMLD | Create Time Loads for C.S | Json | PUT/DELETE | - |
5. Reference API Manual Link
Time Loads for Construction Stage
