1. Description
This component operates the Tendon Group function in Civil NX.
Define (add, modify & delete) Tendon Group names to which specific tendons are later assigned. Tendons in a Tendon Group are related in terms of their locations and structural functionality.
The Tendon Group function can be found in the Civil NX main menu,select
[Project] Tab> [Group] Group > [Group] Menu > [Tendon Group] Menu
2. Grasshopper Path
[Midas] > [Project] > [Tendon Group]

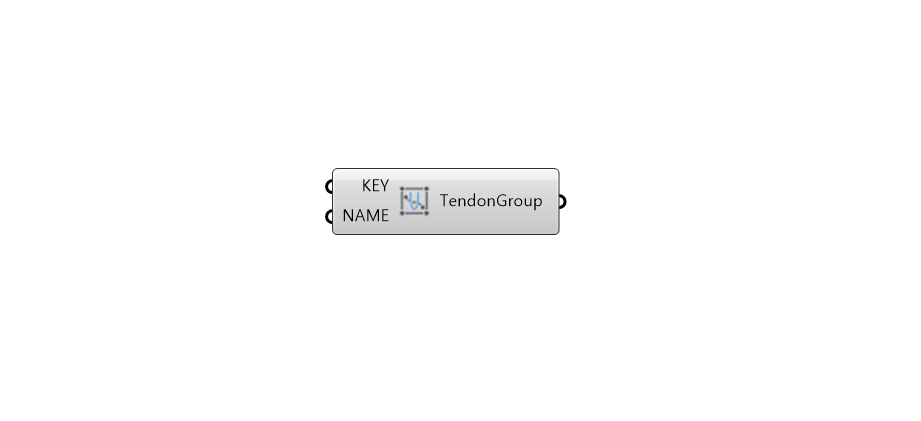

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Group ID | Integer | - | - |
| 2 | NAME | Tendon Group Name | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDGR | Create Tendon Group | Json | PUT/DELETE | - |
5. Reference API Manual Link
