1. Description
This component operates the Node Local Axis function in Civil NX.
Declare a local coordinate system for selected nodes to enter boundary conditions or produce output for reactions.
The Node Local Axis function can be found in the Civil NX main menu,select
[Node/Element] Tab > [Node Detail] Group > [Node Local Axis] Menu
2. Grasshopper Path
[Midas] > [Node/Element] > [Node Local Axis]
Case 1 - Angle Type

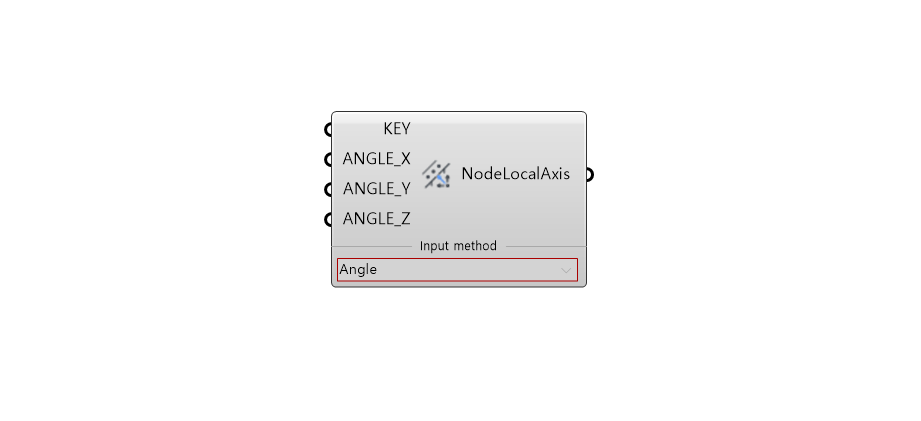

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | ANGLE_X | Angle about X | Real | 0 | - |
| 3 | ANGLE_Y | Angle about Y | Real | 0 | - |
| 4 | ANGLE_Z | Angle about Z | Real | 0 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SKEW | Create Node Local Axis (Angle) |
Json | PUT/DELETE | - |
Case 2 - 3 Points

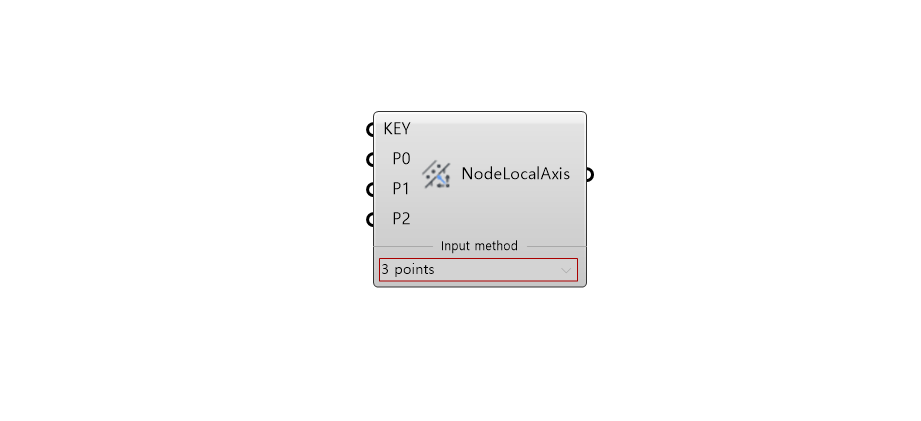

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | P0 | P0 Coordinate | Object | [0,0,0] | Point |
| 3 | P1 | P1 Coordinate | Object | [0,0,0] | Point |
| 4 | P2 | P2 Coordinate | Object | [0,0,0] | Point |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SKEW | Create Node Local Axis (3 Point) |
Json | PUT/DELETE | - |
Case 3 - Vector

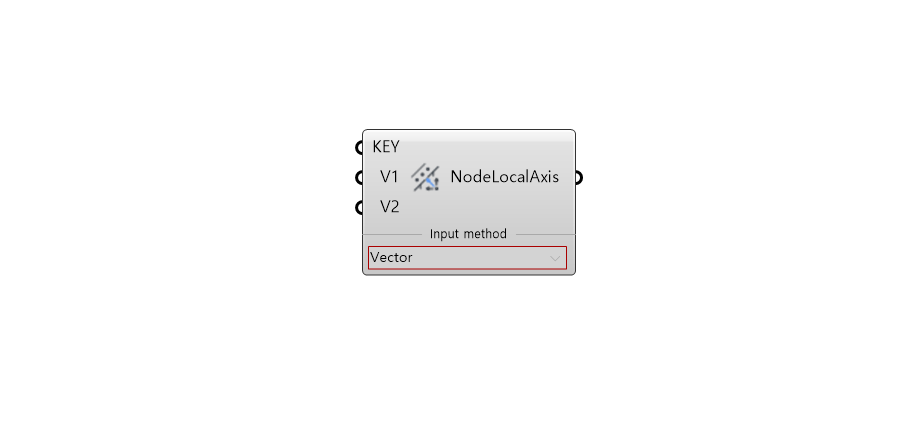

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | V1 | Direction Vector V1 | Object | [0,0,0] | Vector |
| 3 | V2 | Direction Vector V2 | Object | [0,0,0] | Vector |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SKEW | Create Node Local Axis (Vector) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
