1. Description
This component generates Web Thick. For Shear of PSC Shape function in the Civil NX.
Shear forces are calculated at the parts critical to shear in the PSC section. The user can directly enter the position. If the Auto option is checked on, the program checks shear at the top and bottom ends of the webs
The Web Thick. For Shear of PSC Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [PSC] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Web Thick. For Shear of PSC Shape ]

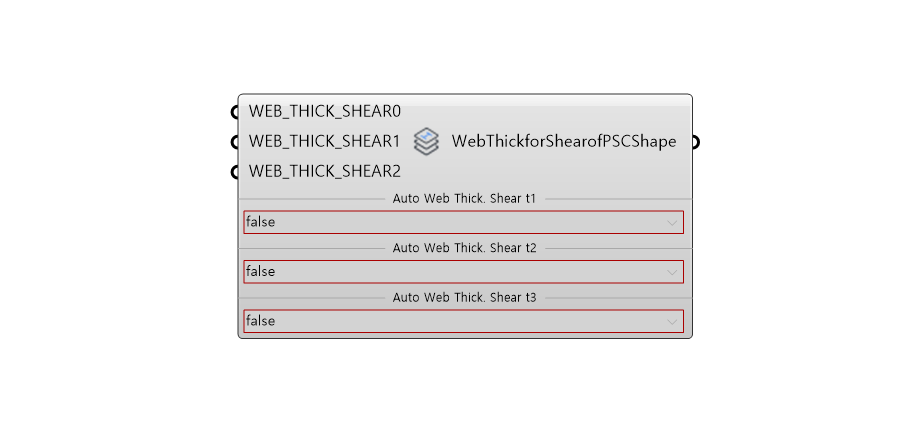

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | WEB_THICK _SHEAR0 |
Web Thickness Value for Shear t1 | Real | 0 | - |
| 2 | WEB_THICK _SHEAR1 |
Web Thickness Value for Shear t2 | Real | 0 | - |
| 3 | WEB_THICK _SHEAR2 |
Web Thickness Value for Shear t3 | Real | 0 | - |
| 4 | Auto Web_Thick _Shear t1 |
Web Thickness Check for Shear t1 | Select | false | - |
| 5 | Auto Web_Thick _Shear t2 |
Web Thickness Check for Shear t2 | Select | false | - |
| 6 | Auto Web_Thick _Shear t3 |
Web Thickness Check for Shear t3 | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Web Thick. For Shear of PSC Shape | Object | - |
PSC Shape 1,2 Cell |
5. Reference API Manual Link
