1. Description
This component generates Girder Dimension of Composite Shape in the Civil NX.
Girder Dimension includes only the Type for Steel Girder, and the detailed configuration items are as follows
a. Steel-Box [ Type 1, 2 ]
b. Steel-I [ Type 1, 2 ]
c. Steel -Tub [ Type 1, 2 ]
The Girder Dimension of Composite Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Girder Dimension of Composite Shape ]
Case 1 : Steel-Box

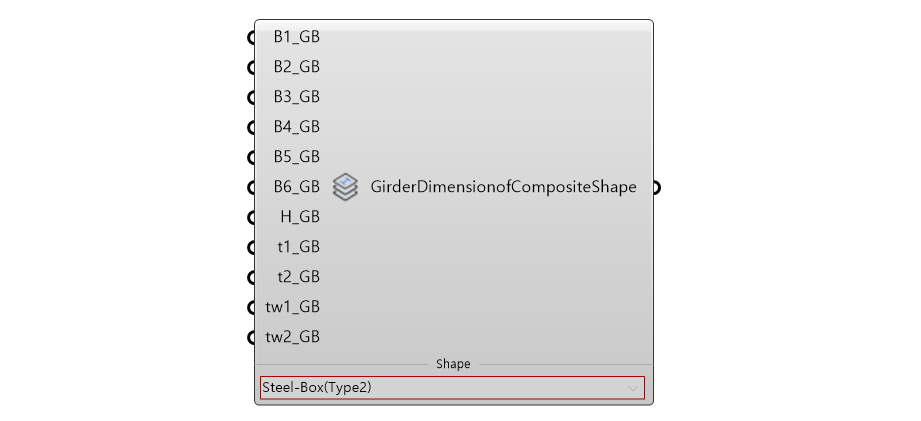

3. Component Image

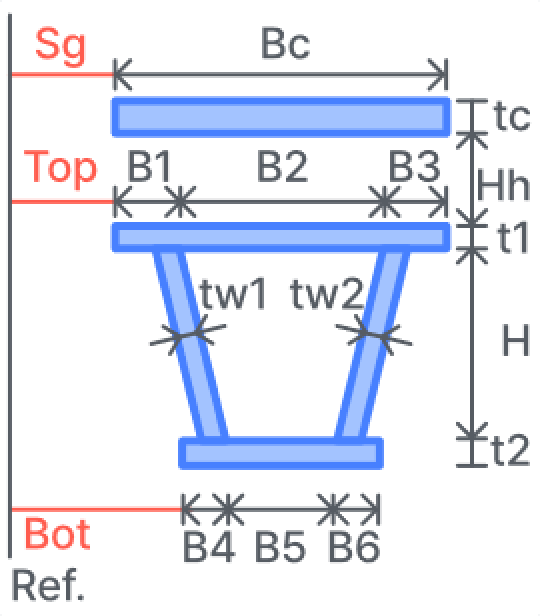

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | B1_GB | Width of Top left flange Height of web excluding flanges |
Real | - | - |
| 2 | B2_GB | Width of Top flange (distnace between web centers in Box type) |
Real | - | - |
| 3 | B3_GB | Width of Top right flange | Real | - | - |
| 4 | B4_GB | Width of Bottom left flange Height of web excluding flanges |
Real | - | - |
| 5 | B5_GB | Width of Bottom flange (distnace between web centers in Box type) |
Real | - | - |
| 6 | B6_GB | Width of Bottom right flange | Real | - | - |
| 7 | H_GB | Height of web excluding flanges | Real | - | - |
| 8 | t1_GB | Thickness of top flange | Real | - | - |
| 6 | t2_GB | Thickness of bottom flange | Real | - | - |
| 7 | tw1_GB | Thickness of left web | Real | - | - |
| 8 | tw2_GB | Thickness of right web | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next Component |
|---|---|---|---|---|---|
| 1 | - | Create Dimension of Steel Shape Data (Steel Box) |
Object | - | Composite Steel Shape (Type 2) |
Case 2 : Steel-I

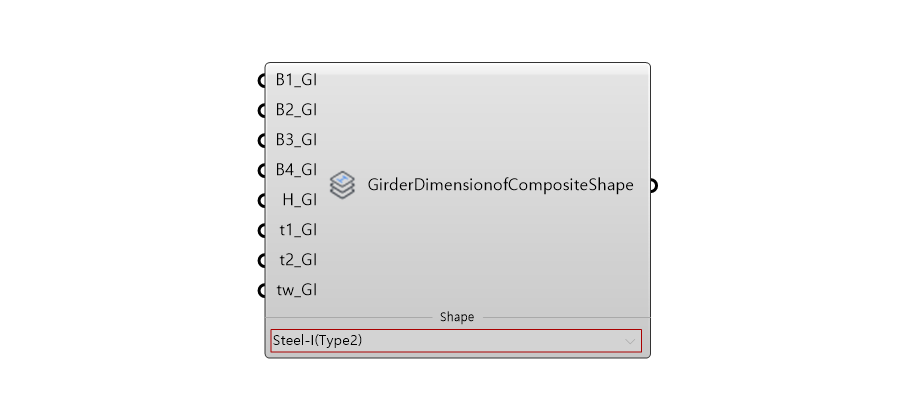

3. Component Image

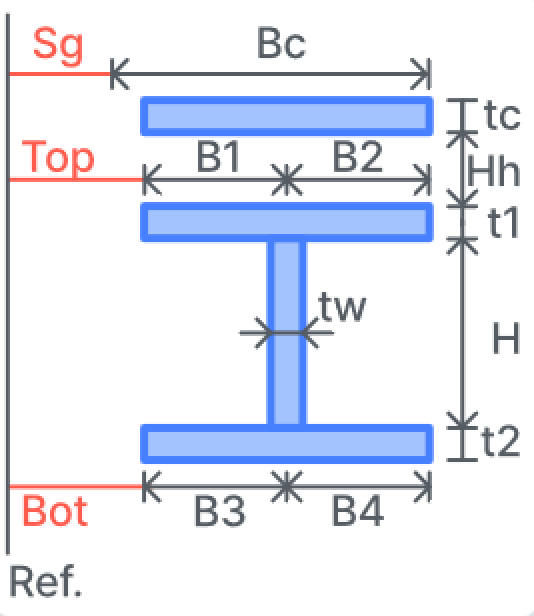

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | B1_GI | Top flange left overhang from the center of web | Real | - | - |
| 2 | B2_GI | Top flange right overhang from the center of web | Real | - | - |
| 3 | B3_GI | Bottom flange left overhang from the center of web | Real | - | - |
| 4 | B4_GI | Bottom flange right overhang from the center of web | Real | - | - |
| 5 | H_GI | Height of web excluding flanges | Real | - | - |
| 6 | t1_GI | Thickness of top flange | Real | - | - |
| 5 | t2_GI | Thickness of bottom flange | Real | - | - |
| 6 | tw_GI | Thickness of web | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next Component |
|---|---|---|---|---|---|
| 1 | - | Create Dimension of Steel Shape Data (Steel I) |
Object | - | Composite Steel Shape (Type 2) |
Case 3 : Steel-Tub

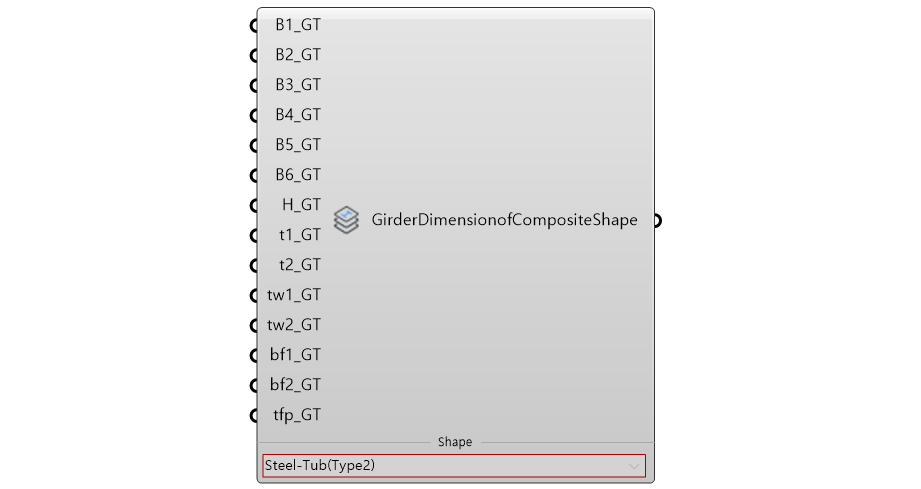

3. Component Image

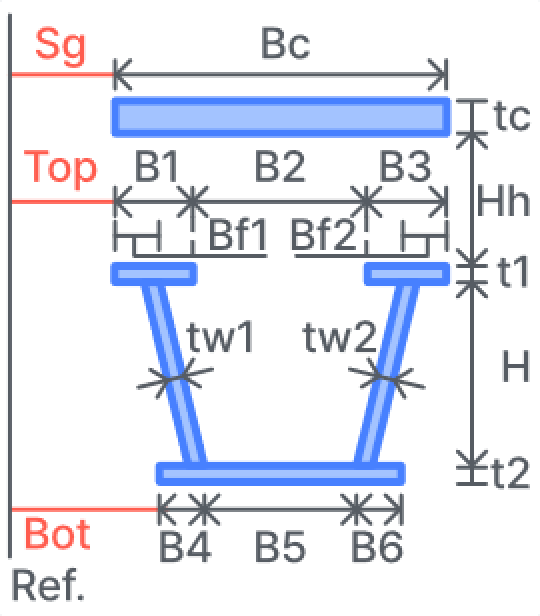

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | B1_GT | Top left flange width | Real | - | - |
| 2 | B2_GT | Clear spacing between the top flanges in Tub type | Real | - | - |
| 3 | B3_GT | Top right flange width | Real | - | - |
| 4 | B4_GT | Bottom flange left overhang from the center of web in Tub Type | Real | - | - |
| 5 | B5_GT | Width of bottom flange | Real | - | - |
| 6 | B6_GT | Bottom flange right overhang from the center of web in Tub Type | Real | - | - |
| 7 | H_GT | Height of web excluding flanges | Real | - | - |
| 8 | t1_GT | Thickness of top flange | Real | - | - |
| 9 | t2_GT | Thickness of bottom flange | Real | - | - |
| 10 | tw1_GT | Thickness of left web | Real | - | - |
| 7 | tw2_GT | Thickness of right web | Real | - | - |
| 8 | bf1_GT | Top left flange overhang from the center of web in Tub Type | Real | - | - |
| 9 | bf2_GT | Top right flange overhang from the center of web in Tub Type | Real | - | - |
| 10 | tfp_GT | Thickness of fictitious top plate | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next Component |
|---|---|---|---|---|---|
| 1 | - | Create Dimension of Steel Shape Data (Steel Tub) |
Object | - | Composite Steel Shape (Type 2) |
5. Reference API Manual Link
Section Properties - Composite - Steel
