1. Description
This component generates Stiffener Position of Composite Steel Shape(Type2) function in the Civil NX.
Enter Composite section properties for line elements.
The Stiffener Position of Composite Steel Shape(Type2) funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab > Stiffener
2. Grasshopper Path
[Midas] > [Properties] > [Stiffener Position of Composite Steel Shape(Type2)]
Case 1 : Steel-Box

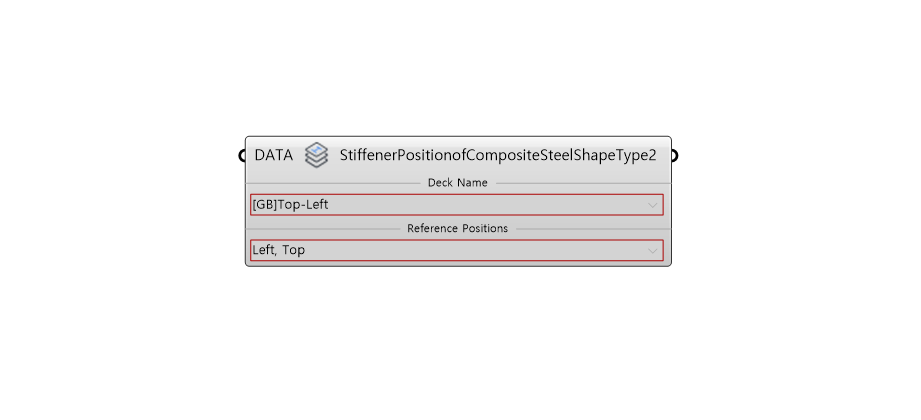

3. Component Image

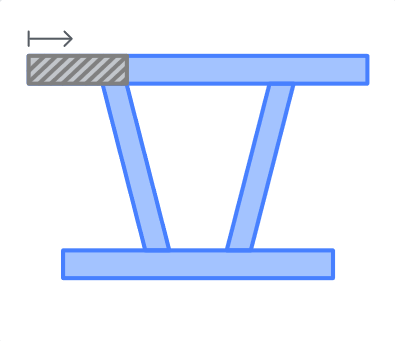

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | DATA | Define Stiffener Shape | Object | - | Stiffener Item of Composite Steel Shape |
| 2 | Deck Name |
※ Deck Position Name |
Select | [GB]Top-Left | - |
| 3 | Reference Positions | Reference Positions
· Ref. flange Position : "Left" , "Right" · Ref. web Position : "Top" , "Bottom" |
Select | Left, Top | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener Position of Composite Steel Shape(Type2) Data (Steel-Box) |
Object | - | Stiffener of Composite Steel Shape(Type2) |
Case 2 : Steel-I

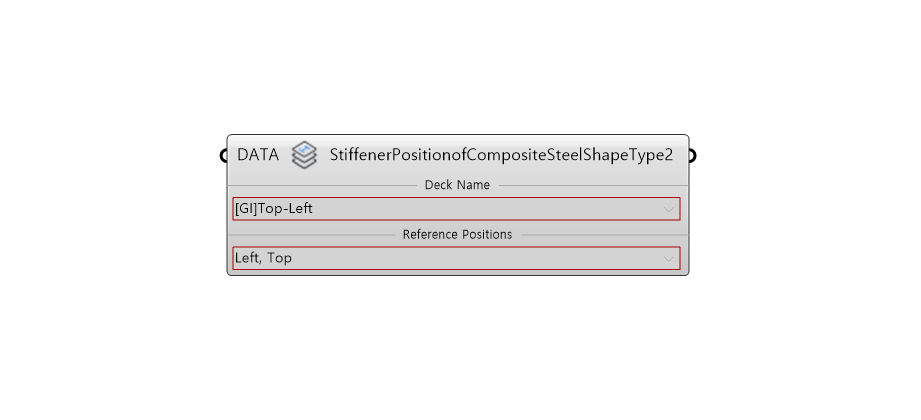

3. Component Image

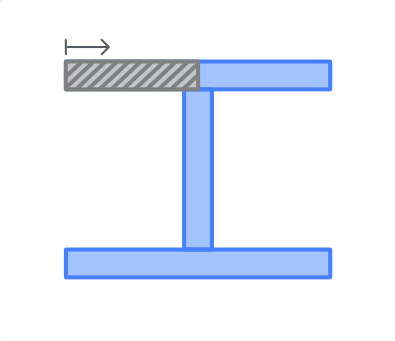

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | DATA | Define Stiffener Shape | Object | - | Stiffener Item of Composite Steel Shape |
| 2 | Deck Name |
※ Deck Position Name |
Select | [GI]Top-Left | - |
| 3 | Reference Positions | Reference Positions
· Ref. flange Position : "Left" , "Right" · Ref. web Position : "Top" , "Bottom" |
Select | Left, Top | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener Position of Composite Steel Shape(Type2) Data (Steel-I) |
Object | - | Stiffener of Composite Steel Shape(Type2) |
Case 3 : Steel-Tub
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | DATA | Define Stiffener Shape | Object | - | Stiffener Item of Composite Steel Shape |
| 2 | Deck Name |

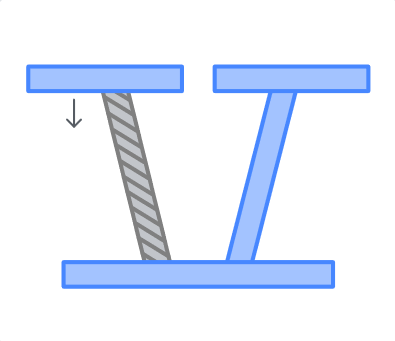

※ Deck Position Name |
Select | [GT]Top-Left | - |
| 3 | Reference Positions | Reference Positions
· Ref. flange Position : "Left" , "Right" · Ref. web Position : "Top" , "Bottom" |
Select | Left, Top | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener Position of Composite Steel Shape(Type2) Data (Steel-Tub) |
Object | - | Stiffener of Composite Steel Shape(Type2) |
※ Deck Position Name
|
Section/ |
Part | Steel-Box | Steel-I | Steel-Tub | ||
|---|---|---|---|---|---|---|
| Top Flange | Left | [GB]Top-Left | [GI]Top-Left | - | ||
| Center | [GB]Top-Center | - | - | |||
| Right | [GB]Top-Right | [GI]Top-Right | - | |||
| Bottom Flange | Left | [GB]Bottom-Left | [GI]Bottom-Left | [GT]Bottom-Left | ||
| Center | [GB]Bottom-Center | - | [GT]Bottom-Center | |||
| Right | [GB]Bottom-Right | [GI]Bottom-Right | [GT]Bottom-Right | |||
| Left Web | - | [GB]Web-Left | [GI]Web | [GT]Web-Left | ||
| Right Web | - | [GB]Web-Right | [GT]Web-Right | |||
5. Reference API Manual Link
Section Properties - Composite - Steel
