1. Description
This component generates Stiffener Item of Composite Steel(Type2) function in the Civil NX.
Chose the stiffener to be positioned on the left or right or both sides of the web.
The Stiffener Item of Composite Steel(Type2) funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab > Stiffener
2. Grasshopper Path
[Midas] > [Properties] > [Stiffener Item of Composite Steel(Type2)]

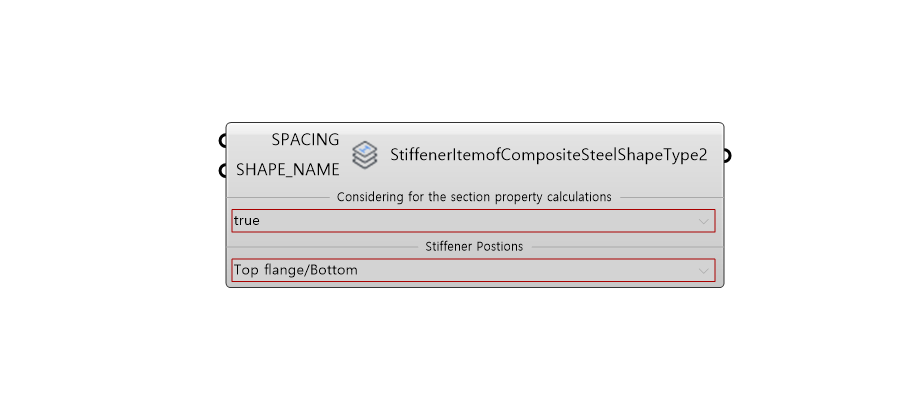

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SPACING | Stiffener Spacing | Real | - | - |
| 2 | SHAPE_NAME | Stiffener Shape Name | String | - | - |
| 3 | Considering for the section property calculations | Considering for the section property calculations | Select | true | - |
| 4 | Stiffener Positions | Stiffener Positions of Flange or Web
· Top Flange : · Bottom Flange : · Web : |
Select | Top flange/Bottom | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener Item of Composite Steel(Type2) Data | Object | - | Stiffener Position of Composite Steel Shape Type2 |
5. Reference API Manual Link
Section Properties - Composite - Steel
