1. Description
This component operates the Load Combinations (General) function in Civil NX.
Enter the load combinations to combine the results of static, construction stage, moving load, response spectrum and time history analyses.
The Load Combinations (General) can be found in the Civil NX main menu,select
[Results] Tab > [Analysis Result] Tab > [Combination] Group > [Load Combination] Menu
2. Grasshopper Path
[Midas] > [Results] > [Load Combinations (General)]

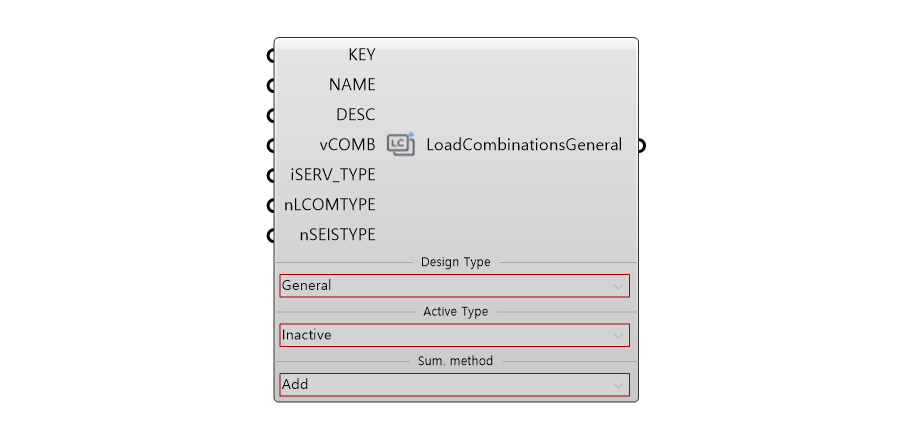

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Combination ID | Integer | - | - |
| 2 | NAME | Combination Name | String | - | - |
| 3 | DESC | Description | String | - | - |
| 4 | vCOMB | Combinations List | Object | - | Item of Load Combinations General |
| 5 | iSERV_TYPE | Eurocode - Serviceability load Combination (Not Use) |
Integer | 0 | - |
| 6 | nLCOMTYPE | AASHTO-Load Combination Type (Not Use) |
Integer | 0 | - |
| 7 | nSEISTYPE | KOREA Standard -Seismic Load Combination (Not Use) |
Integer | 0 | - |
| 8 | Design Type | Design Type | Select | General | - |
| 9 | Active Type | Active Type | Select | Inactive | - |
| 10 | Sum. method | Summation method | Select | Add | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | LCOM-GEN | Create Load Combinations (General) | Json | PUT/DELETE | - |
5. Reference API Manual Link
