1. Description
This component operates the Item of Load Combinations (General) function in Civil NX.
Enter the load combinations to combine the results of static, construction stage, moving load, response spectrum and time history analyses.
The Item of Load Combinations (General) function can be found in the Civil NX main menu,select
[Results] Tab > [Analysis Result] Tab > [Combination] Group > [Load Combination] Menu
2. Grasshopper Path
[Midas] > [Results] > [Item of Load Combinations (General)]

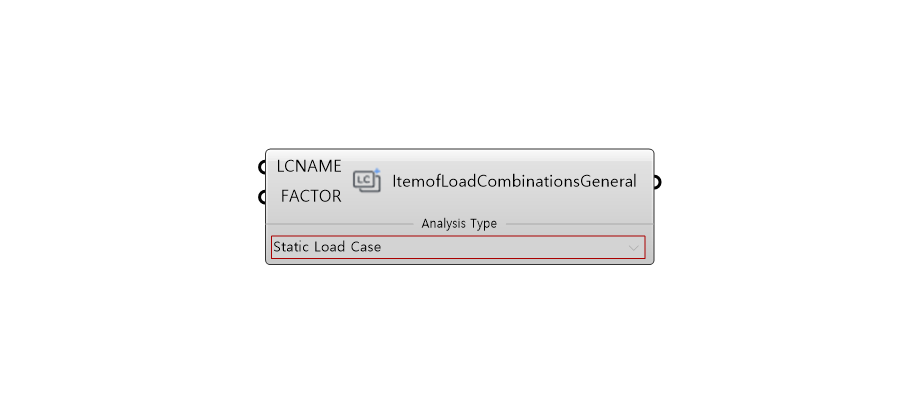

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LCNAME | Load Case Name | String | - | - |
| 2 | FACTOR | Load Case Factor | Real | - | - |
| 3 | Analysis Type | Load Case Type | String | Static Load Case | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Item of Load Combinations (General) | Object | - | Load Combinations (General) |
5. Reference API Manual Link
