1. Description

This component operates the Result Table Displacements function in Civil NX.
Check the displacement of a particular node in numerical values.

The Result Table Displacements function can be found in the Civil NX main menu,select
[Results] Tab > [Analysis Result] Tab > [Table] Group > [Result Table] Menu > Displacements Menu

2. Grasshopper Path

[Midas] > [Results] > [Result Table Displacements]

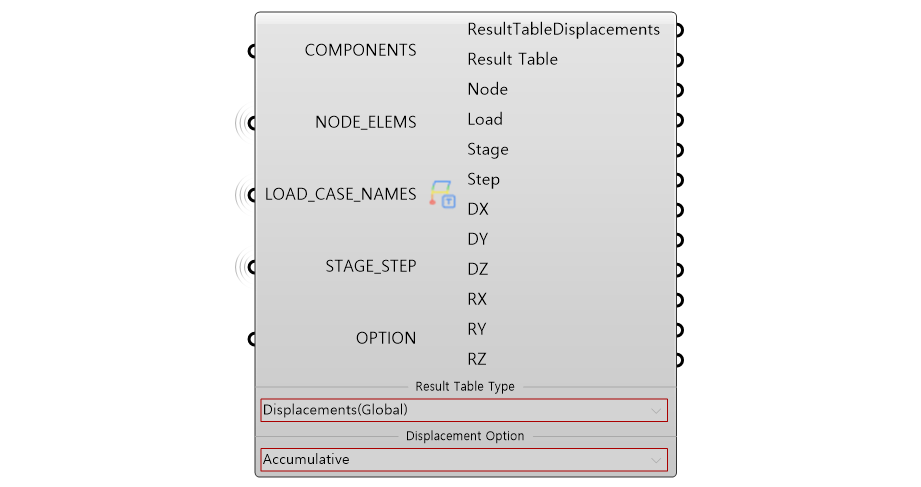

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	COMPONENTS	Components of Result Table (If you want to specify a component, only the entered components will be displayed)	String	-	-
2	NODE_ELEMS	Node or element number to check the result	Object	-	Elems of Result Table
3	LOAD_CASE _NAMES	Static Load/Load Combination Name & Type · Static Load Cases a.NAME + "(ST)" Ex) DL(ST) · Load Combinations a.NAME + "(CB)" b.NAME + "(CB:all)" c.NAME + "(CB:max)" d.NAME + "(CB:min)" EX) gLCB1(CB) ※ Load Combinations of Design Type a. General : "CB" b. Concrete : "CBC" c. Steel : "CBS" d. SRC : "CBR" e. Composite : "CBSC" · Construction Stage a.NAME + "(CS)" EX) Summation(CS) · Response Spectrum a.NAME + "(RS)" EX) RX(RS) · Moving Load a.NAME + "(MV)" EX) DB1(MV) · Settlement Load a.NAME + "(SM)" EX) STL1(SM)	String	-	-
4	STAGE_STEP	Stage Step Name · Stage Name + " : Step Number"+"(Step Name)" EX) CS01:001(first)	String	-	-
5	OPTION	Reponse Number Format	Object	-	Option of Result Table
6	Result Table Type	Result Table Type	Select	Displacement (Global)	-
7	Displacement Option	Displacement Option	Select	Accumulative	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	TABLE	Create Result Table Displacements	String	POST	-

※ To export in CSV format, right-click the icon and click Export.

5. Reference API Manual Link

Displacements - Analysis Result Table
