1. Description
This component operates the Elems of Result Table function in Civil NX.
Set the Node and element number you want to check in the Result Table.
The Elems of Result Table function can be found in the Civil NX main menu,select
[Results] Tab > [Analysis Result] Tab > [Table] Group > [Result Table] Menu
2. Grasshopper Path
[Midas] > [Results] > [Elems of Result Table]

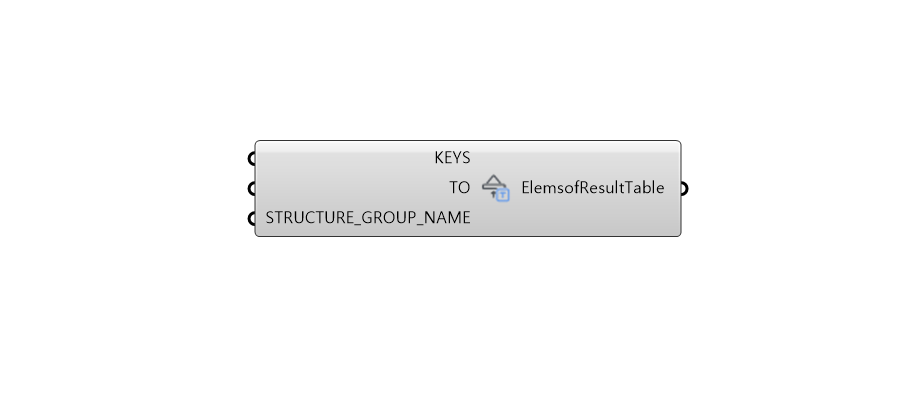

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEYS | Specify Each ID | Integer | - | - |
| 2 | TO | Specify ID Range (Start ID + to + End ID) |
String | - | - |
| 3 | STRUCTURE _GROUP_NAME |
Specify Structure Group Name | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TABLE | Create Elems of Result Table | Object | - | Result Table (Reaction, Displacements, Beam) |
5. Reference API Manual Link
Beam Force - Analysis Result Table
Beam Force (Static Prestress) - Analysis Result Table
Beam Stress - Analysis Result Table
