1. Description
This component operates the Settlement Group function in Civil NX.
For analyses considering support settlement loads in bridge structures, specify settlement groups within which supports settle simultaneously.
The Settlement Group function can be found in the Civil NX main menu,select [Load] tab > [Settlement] tab > [Settlement Analysis Data] Group > [Settlement Group] Menu
2. Grasshopper Path
[Midas] > [Loads] > [Settlement Group]

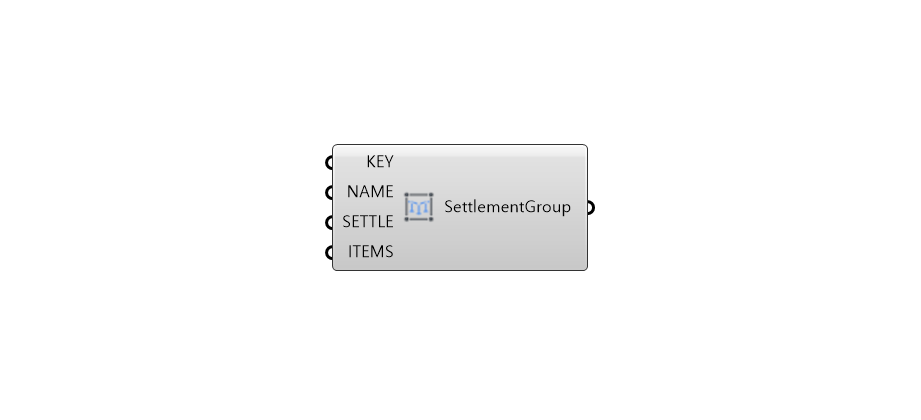

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Settlement Group ID | Integer | - | - |
| 2 | NAME | Settlement Group ID Name | String | - | - |
| 3 | SETTLE | Settlement Displacement | Real | - | - |
| 4 | ITEMS | Node List | Integer | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SMPT | Create Settlement Group | Json | PUT/DELETE |
- |
5. Reference API Manual Link
