1. Description
This component operates the Settlement Load Cases function in Civil NX.
Enter the settlement load cases for support settlement analysis.
The Settlement Load Cases function can be found in the Civil NX main menu,select [Load] tab > [Settlement] tab > [Settlement Analysis Data] Group > [Settlement Load Cases] Menu
2. Grasshopper Path
[Midas] > [Loads] > [Settlement Load Cases]

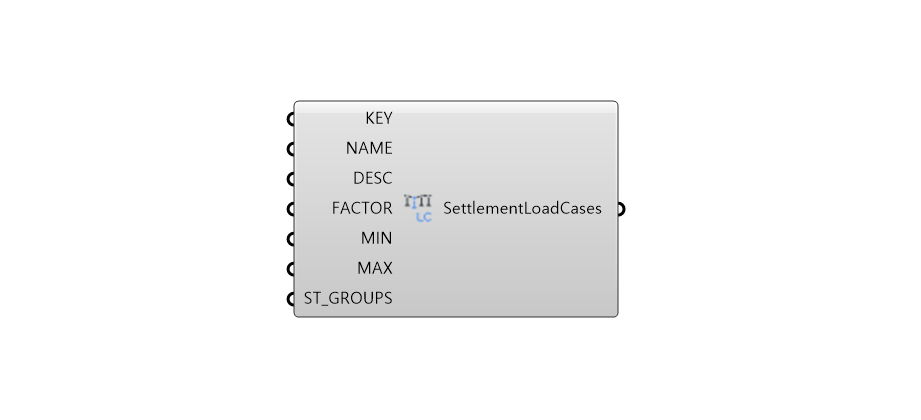

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Settlement Load Case ID | Integer | - | - |
| 2 | NAME | Settlement Load Case Name | String | - | - |
| 3 | DESC | Description | String | - | - |
| 4 | FACTOR | Scale Factor | Real | - | - |
| 2 | MIN | min. number of support settlement groups | Integer | - | - |
| 3 | MAX | Max. number of support settlement groups | Integer | - | - |
| 4 | ST_GROUPS | Node List | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SMLC | Create Settlement Load Cases | Json | PUT/DELETE |
- |
5. Reference API Manual Link
