1. Description
This component operates the Perform Analysis function in Civil NX.
Perform structural analysis of CIVIL NX Model.
The Perform Analysis function can be found in the Civil NX main menu,select [Analysis] tab > [Perform] Group > [Perform Analysis] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Perform Analysis]

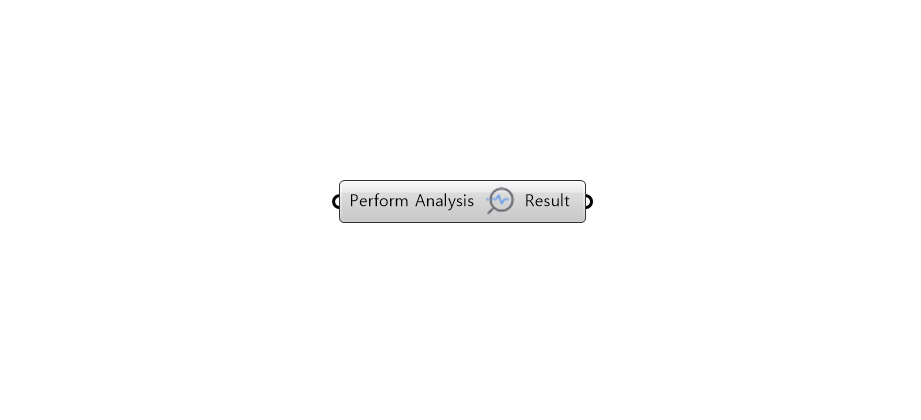

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Perform Analysis | Perform structural analysis of CIVIL NX Model | boolean | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ANAL | Perform Analysis | Json | POST | Time Dependent Effect of Construction Stage Analysis Control Data |
5. Reference API Manual Link
