1. Description
This component operates the System Temp. function in Civil NX.
In thermal stress analysis, when the temperature of the entire structure varies from an initial (reference) temperature to a set temperature (final temperature), enter the final or system temperature. Modify or delete the previously entered final temperature.
The System Temp. function can be found in the Civil NX main menu,select [Load] tab > [Temperature] tab > [Temperature Loads] Group > [System Temp.] Menu
2. Grasshopper Path
[Midas] > [Temperature] > [System Temp.]

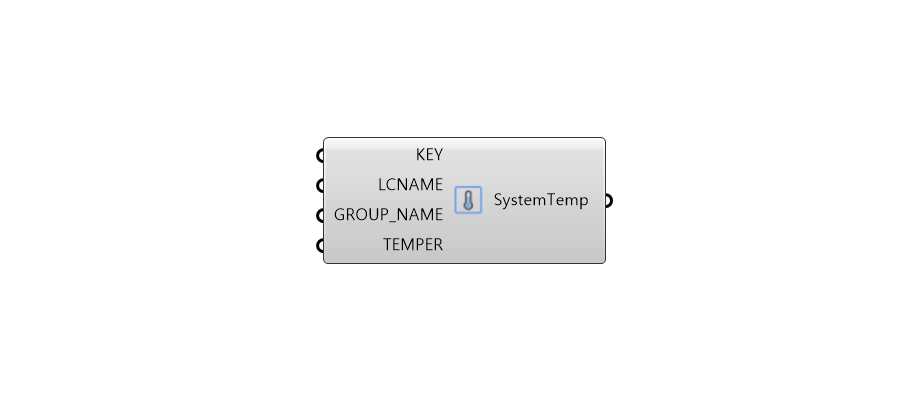

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Temperature ID | Integer | - | - |
| 2 | LCNAME | Load Case Name | String | - | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | TEMPER | System Tmperaure | Real | 0 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STMP | Create System Temp. | Json | PUT/DELETE |
- |
