1. Description

This component operates the User Material function in Civil NX.
when the user wishes to define the material properties directly.
Orthotropic material properties can be also defined in ECS.

The User Material function can be found in the Civil NX main menu,select
[Properties] Tab > [Material Properties] Group > [Material Properties] Menu > User Defined

2. Grasshopper Path

[Midas] > [Properties] > [User Material]

Type 1 : Isotropic

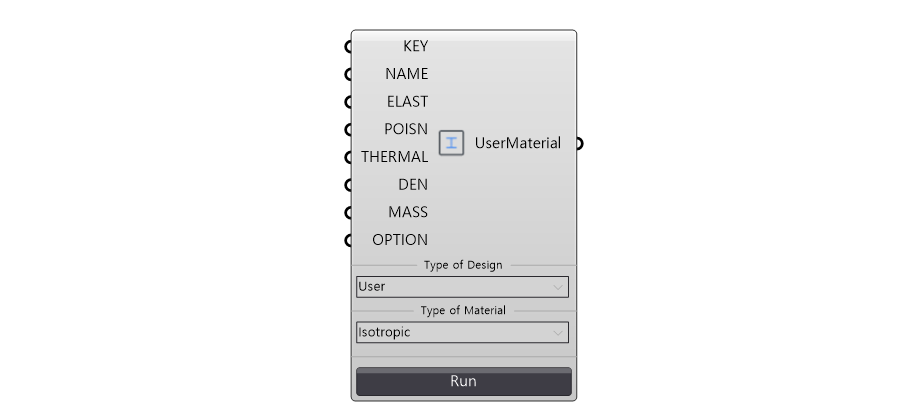

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Material ID	Integer	-	-
2	NAME	Material Name	String	-	-
3	ELAST	Modulus of Elasticity	Real	-	-
4	POISN	Poisson's Ratio	Real	-	-
5	THERMAL	Thermal Coefficient	Real	-	-
6	DEN	Weight of Density	Real	-	-
7	MASS	Mass of Density	Real	-	-
8	OPTION	Additional Option	Object	-	Material Additional Option
9	Type of Design	Design Type	Select	User	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MATL	Create User Material (Isotropic)	Json	PUT/DELETE	-

Type 2 : Orthotropic

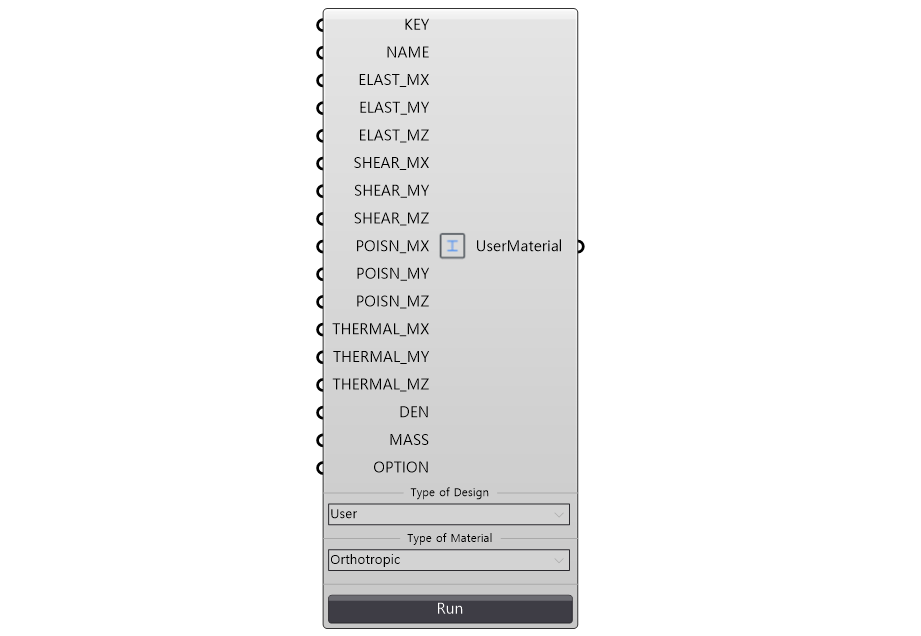

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Material ID	Integer	-	-
2	NAME	Material Name	String	-	-
3	ELAST _MX _MY _MZ	Modulus of Elasticity	Real	-	-
4	SHEAR _MX _MY _MZ	Shear Modulus	Real	-	-
5	POISN _MX _MY _MZ	Poisson's Ratio	Real	-	-
6	THERMAL _MX _MY _MZ	Thermal Coefficient	Real	-	-
7	DEN	Weight of Density	Real	-	-
8	MASS	Mass of Density	Real	-	-
9	OPTION	Additional Option	Object	-	Material Additional Option
10	Type of Design	Design Type	Select	User	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MATL	Create User Material (Othotropic)	Json	PUT/DELETE	-

5. Reference API Manual Link

Material Properties
