1. Description
This component operates the Vehicles Classes function in Civil NX.
Enter vehicle load classes for moving load analysis.
The Vehicles Classes function can be found in the Civil NX main menu,select
[Load] Tab > [Moving Load] Tab > [Advanced] Group > [Vehicle Classes] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles Classes]

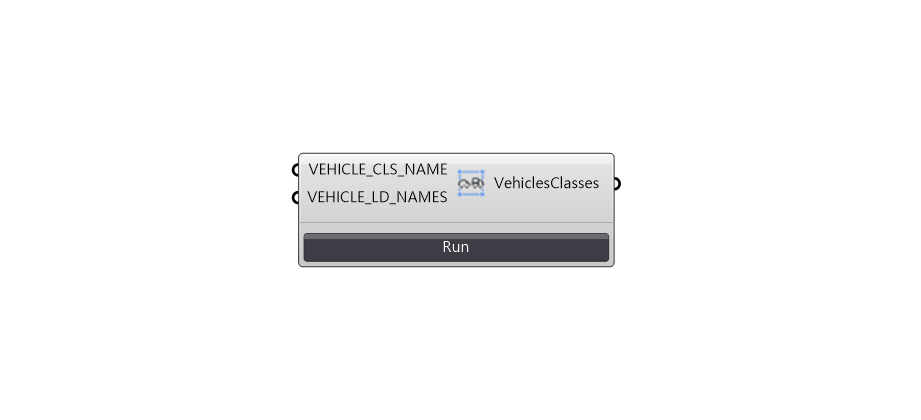

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_CLS _NAME |
Vehicle Class Name | String | - | - |
| 2 | VEHICLE_LD _NAMES |
Selected Vehicle List | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHC | Create Vehicles Classes | Json | PUT/DELETE | - |
5. Reference API Manual Link
