1. Description
This component operates the Dynamic Load Allownace function in Civil NX.
Defines the impact load factor for all limiting conditions of the floor plate expansion joint.
The Dynamic Load Allownace function can be found in the Civil NX main menu,select
[Load] Tab > [Moving Load] Tab > [Advanced] Group > [Dynamic Load Allownace] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Dynamic Load Allownace]

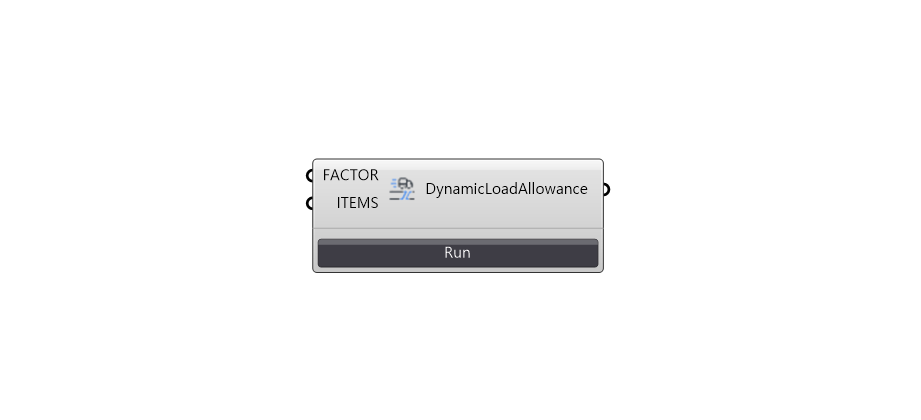

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | FACTOR | Impact Factor(%) | Integer | - | - |
| 2 | ITEMS | Selected Structure Group List | Integer | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | DYLA | Create Dynamic Load Allownace | Json | PUT/DELETE | - |
5. Reference API Manual Link
