Span Information Item

1. Description

This component operates the Span Information Item function in Civil NX.
Span Information is required for inputting the variation of the section and reinforcement in the primary direction, and also for automatically generating the effective width. Span Information contains the information about the number and location of end supports and interior supports, and the span length. Since the program does not acknowledge the intuitive information of the span and girder, the user should define the span information which contains the components of span and girder.

The Span Information Item function can be found in the Civil NX main menu,select
[Structure] Tab > [Bridge] Group > [Bridge Option] Menu > [Span Information] Menu

2. Grasshopper Path

[Midas] > [Structure] > [Span Information Item]

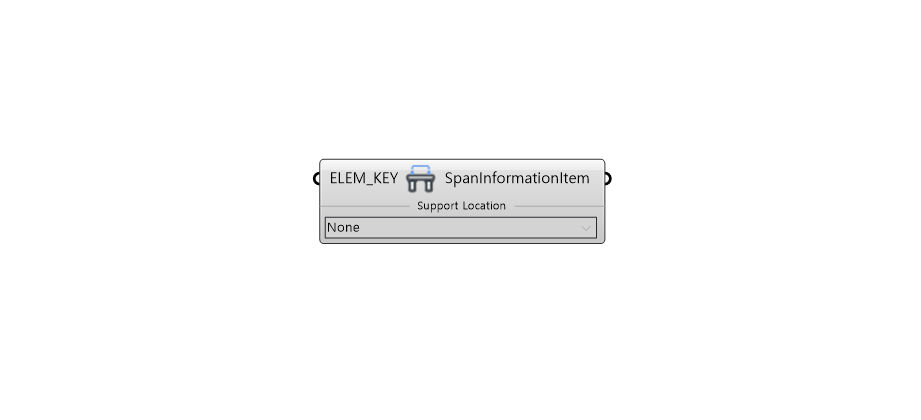

3. Component Image

4. Input/Output Value

• Input Data
