Static Load Tables 생성 편집

Seismic Earth Pressure

기능

  • 프레임구조가 있는 임의형상의 공간구조물에 입력된 풍하중을 Spread Sheet형식의 Table에서 입력하거나 수정합니다.
  • CIVIL 의 Table Tool은 강력하고 다양한 각종 기능을 내장하고 있으며 자세한 사용법은 Table Tool의 사용방법을 참조합니다.



호출

메인 메뉴에서 [Load] 탭 > [Type : Static Loads] > [Load Tables] 그룹 > [Static Load] > [Plane Loads]



입력

("Seismic Earth Pressure" 참조)

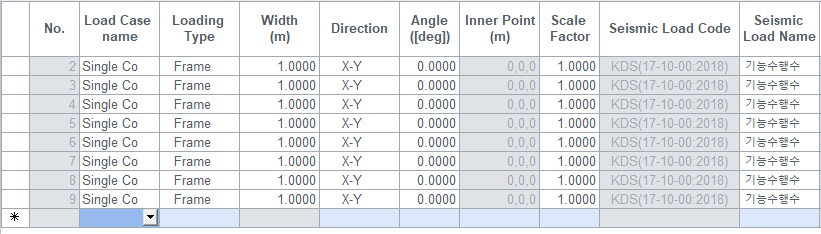

Table Tool의 사용방법을 참조하여 다음 데이터를 입력하거나 수정합니다.

Node

절점번호



Load Case Name

단위하중조건



Loading Type

하중을 적용할 대상요소의 종류를 지정.(Frame, Planar)



Width

보요소의 단위길이당 폭



Direction

하중 재하방향



Angle

전체좌표계 X축에 대한 지진토압 입력각도(degree)



Inner Point

구조물의 내부절점



Scale Factor

하중증감계수



Seismic load Code

지진토압하중 계산에 적용할 기준(KDS17-10-00:2018)



Seismic load Name

Parameters of Seismic Load 에서 적용한 지하층 지진하중(Seismic Load for Earth Pressure) 이름

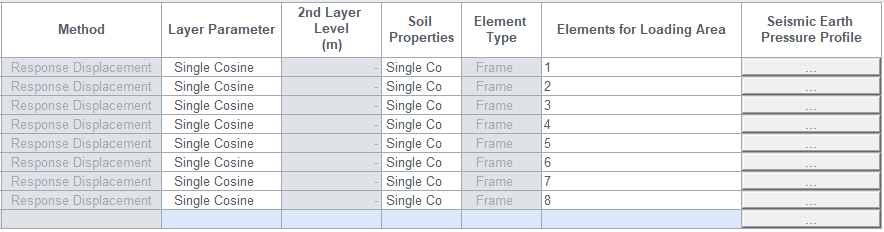

Method

선택된 Parameters of Seismic Load의 지진토압 계산법(Equivalent Static, Response Displacement)



Layer Parameter

지진토압 계산법 중 응답변위법(Response Displacement)선택시 활성화되며, 단일(Single),이중(Double)코사인법을 표기



2nd Layer Level

응답변위법(Response Displacement)의 이중(Double)코사인법시 활성화되며, 제 2층이 시작되는 레벨



Soil Properties

Parameters of Soil Properties 에서 적용한 지반 특성창(Soil Properties Name) 이름



Element Type

하중을 생성할 대상요소의 종류를 지정.(Frame, Planar)



Elements for Loading Area

Define Loading Area Group에 등록된 Area Group 이름



Seismic Earth Pressure Profile

자동 연산된 지진토압을 적용방향과 성분에 따라 Spread Sheet 형태의 Table과 Graph를 확인
