1. Description
This component enter the section dimensions to be used for design, referring to PSC Viewer. The dimensions are used for calculating the shear strength. If 0 is inputted in T2, then the program automatically recognizes the section as a Tee section, and uses BT as web thickness.
The Param for Design in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > PSC
2. Grasshopper Path
[Midas] > [Properties] > [ Param for Design ]

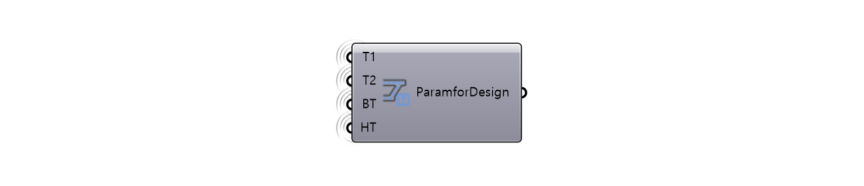

3. Component Image

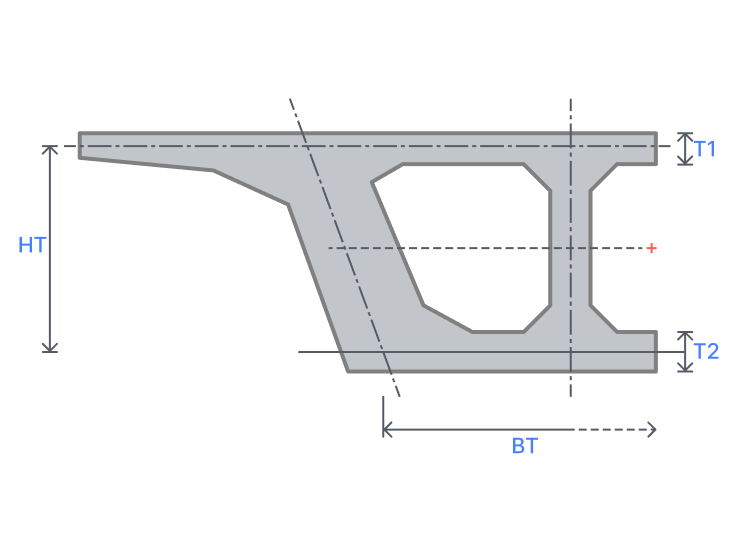

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | T1 | Param. for Design | Real | - | - |
| 2 | T2 | - | - | ||
| 3 | BT | - | - | ||
| 4 | HT | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create Param for Design Data | Object | - | PSC Value Shape |
5. Reference API Manual Link
